Description

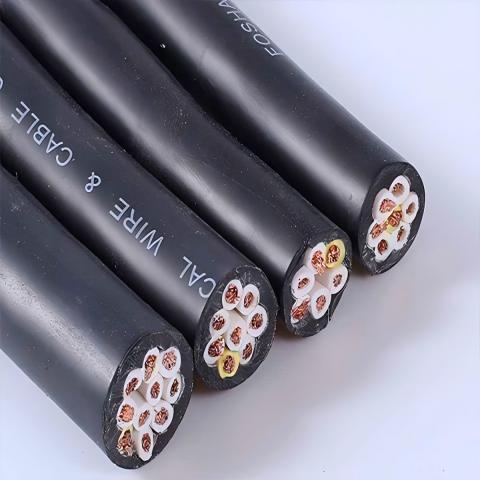

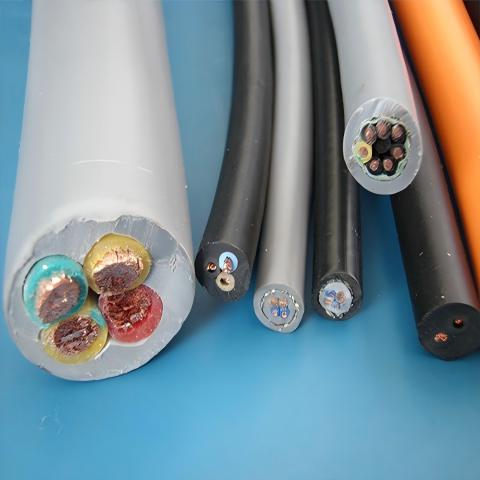

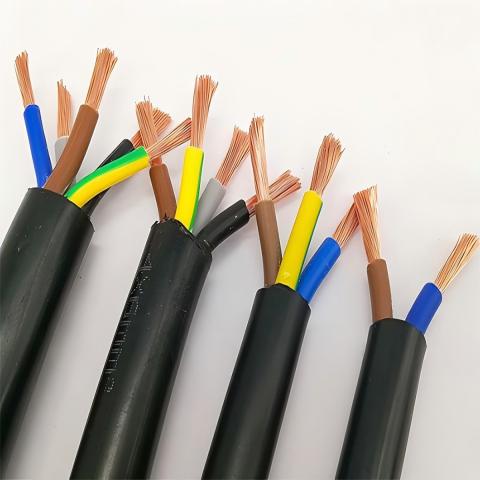

Rubber sheathed cables are widely used in various electrical equipment, such as mobile power cords for household appliances, electrical machinery, electrical devices and appliances. It can also be used in indoor or outdoor environmental conditions. According to the mechanical external force on the cable, it is divided into three categories in the product structure: light, medium and heavy. There is also a proper articulation in the cross-section.
Generally, lightweight rubber sheathed cables are used in daily electrical appliances and small electric equipment, which require softness, lightness, and good bending performance;
In addition to industrial use, medium-sized rubber sheathed cables are widely used in agricultural electrification;
Heavy-duty cables are used in applications such as port machinery, searchlights, and large-scale hydraulic irrigation and drainage stations in the household industry. This type of product has good versatility, complete series specifications, good performance and stability.
Working Condition
Rubber material: consistent with the wire rod of the wire to be replenished, and the glue content is higher than that of the material to be supplemented, and the vulcanization system is slightly stronger.
Features
FEATURE 1
The incomparable flexibility of other ordinary cables
FEATURE 2
It has excellent electrical insulation properties and chemical stability
FEATURE 3
It has good physical and mechanical properties and wear resistance
FEATURE 4
By adding special rubber compounding agent, it can meet the high requirements of oil resistance, flame retardant, cold resistance and heat resistance
Technical Data
| Conductor | Bare copper, extra fine wires |
| Insulation | PVC |
| Reinforce | Galvanized steel rope(optional) |
| Sheath | PVC/TPU(optional) |
| Core Identification | Core: black with numerals plus green-yellow ground wire Sheath: black or gray or on request |
| Technical Data | |
| Min. bend radius | 10 x diameter of cable |
| Nominal Voltage | 450/750V |
| Test Voltage | 3000V |
| Temperature range | -10℃-70℃ |
| Flexible | Yes |
| Tension resistance | Yes |
| Oil resistance | Yes |
| Flame retardant | Yes |
| Resistant to weak Acids and alkalis | Yes |
