Description

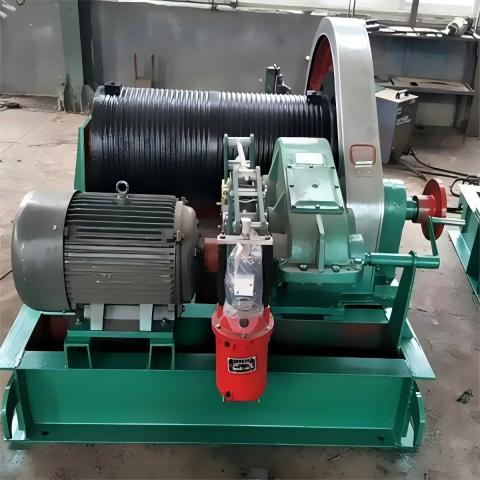

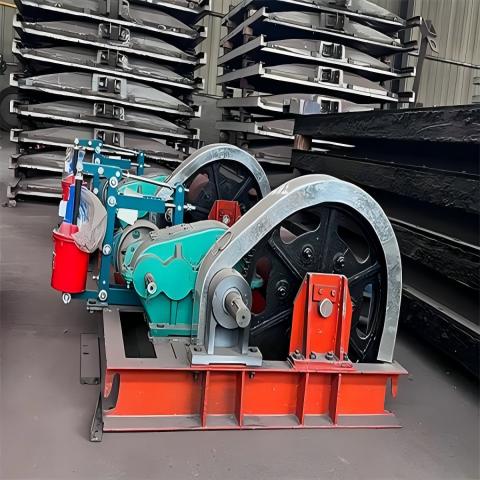

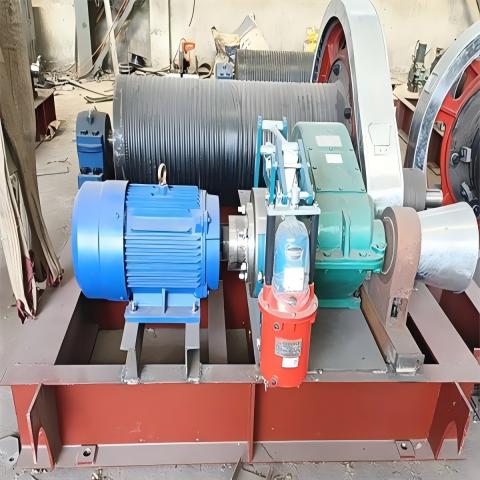

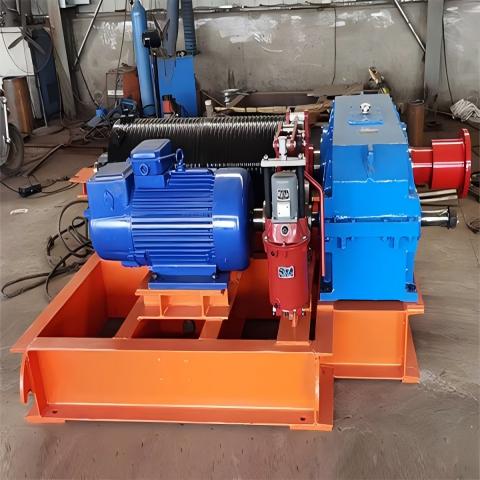

The winch type hoist is composed of a frame, a lifting mechanism, and an electrical control system. The lifting mechanism is mainly composed of a pulley group, a rolling mill group, a driving device (including a formal gear pair, a reducer brake, an electric motor, etc.), and safety devices. The hoist is connected to the gate through a lifting device located on the moving pulley of the pulley group to open and close the gate. The working principle is that the electric motor drives the brake wheel coupling and reducer to drive the open gear pair and the rolling mill to rotate. The steel wire rope on the rolling mill is then lifted and lowered by the pulley and balance pulley.
Working Condition
1. Installation environment: It should be avoided to install in flammable and explosive places. Electric hoists should be installed in a stable, ventilated, dry, and temperature appropriate environment.
2. Installation location: The electric hoist should be installed at a suitable location according to the actual situation of pipeline layout, installation method, process requirements, etc.
3. Connection method: The wiring of the electric hoist should comply with relevant electrical installation specifications to ensure safety and reliability.
Features
FEATURE 1
The QH type hoist surface hole radial gate winch has the advantages of beautiful appearance, compact structure, easy installation, safe operation, flexible opening and closing, smooth operation, reliable quality, large bearing capacity, high work efficiency, long service life, and low maintenance costs.
FEATURE 2
Compared with QP and QPK types of hoisting hoisting machines, the QH type surface hole radial gate hoisting machine has a complex structure, a large transmission mechanism size speed ratio, a large rope tension, a thick diameter, and a large weight (three times the weight of the QPK type of hoisting force of the same specification), high cost, and low working head.
Technical Data
| Opening and closing machine model | QPQ- | QPQ-60 | QPQ- | QPQ-80 | QPQ- | QPQ-100 | QPQ- | |
| 2×60 | 2×80 | 2×100 | 2×120 | |||||
| Opening force (t) | 12 | 6 | 16 | 8 | 20 | 10 | 24 | |
| Door opening height | H1 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| H2 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | |
| Opening and closing speed (m/min) | 1.37 | 141 | 2.15 | 2.07 | 2.25 | 2.17 | 2.41 | |
| Drum （m) (m | 250 | 250 | 300 | 300 | 300 | 300 | 300 | |
| Steel Wire Rope – Special – Light – Right Intersection | 6W(19)- | 6W(19)- | 6W(19)- | 6W(19)- | 6W(19)- | 6W(19)- | 6W(19)- | |
| 12-155 | 12-155 | 13-155 | 13-155 | 14-155 | 14-155 | 16-155 | ||
| Motor | Model | Y132M | Y112M | Y132M | Y132M1 | Y160M | Y132M1 | Y160L |
| -6 | -6 | -6 | -6 | -6 | -6 | -6 | ||
| Power (KW) | 4 | 2.2 | 5.5 | 4 | 7.5 | 4′ | 11 | |
| Reducer | Model | ZQ | ZQ-25 | ZQ-25 | ZQ-25 | ZQ-25 | ZQ-25 | ZQ-25 |
| -25 | ||||||||
| speed ratio | 40.17 | 40.17 | 40.17 | 40.17 | 38.37 | 40.17 | 48.57 | |
| Brakes | Model | TJz-200 | TJs-200 | TJ2-200 | TJa-200 | TJa-200 | TJa-200 | TJs-200 |
| moment (N – m) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | |
| Moving pulley ratio | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Open gear ratio | 4.85 | 4.85 | 4.85 | 4.85 | 4.85 | 4.85 | 5.11 | |
| Weight (T) | 1.9 | 1.12 | 2.18 | 1.34 | 2.25 | 1.4 | 3.4 | |
| Hanging point distance (m) | 1.8 | 1.8 | 1.8 | 1.8 | ||||
| -6.5 | -6.5 | -6.5 | -6.5 | |||||
Spare Parts
Steel wire rope drum
The drum is one of the core components of the hoist, and its main function is to rotate and roll the steel wire rope. The drum is directly installed on the output shaft of the reducer and rotates through gear transmission. During the operation of the hoist, the steel wire rope is wound around the drum. After starting the hoist, the drum begins to rotate, thereby achieving the pulling of the steel wire rope.
Steel wire rope
The steel wire rope of an electric hoist is the main component for lifting and pulling heavy objects. The steel wire rope is directly used for the lifting work of the winch, and it must also be able to withstand the weight of heavy objects and changes in the center of gravity. During lifting work, the stress on the steel wire rope is very high, and high-quality and high-strength steel wire ropes are usually used.
