Description
It is a group of power transmission devices that supply power to mobile devices.

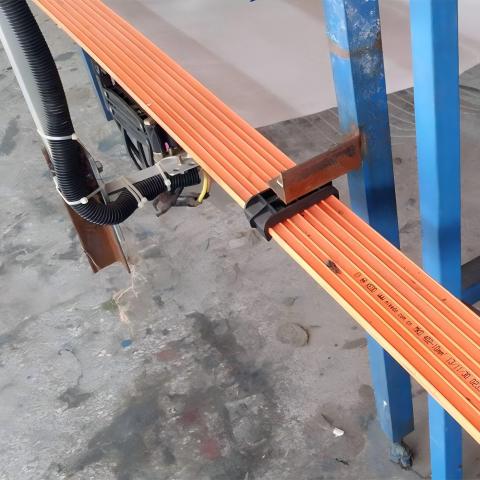

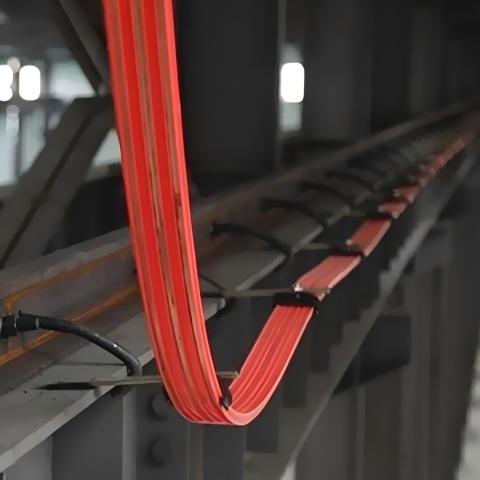

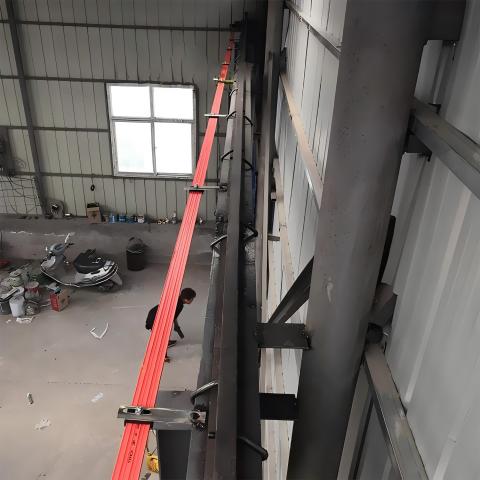

Mobile devices need to constantly change positions because they are moving, and in each different position, the mobile device must be able to get power at all times, otherwise it cannot continue to move. That’s where the conductor line comes in. Several conductors are laid in parallel along the running track of the mobile device and the power supply is connected. On mobile equipment, a current collector that can draw electricity from conductors is installed. In this way, when the equipment moves, the current collector runs synchronously with the equipment, and takes power from the conductor at any time and provides it to the equipment so that the equipment can continue to move. These conductors and current collectors are called conductor lines.
Working Condition
The enclosure is IP13 and IP55 rated on demand and protects against rain, snow, frost and freezing as well as foreign objects.
Features
FEATURE 1

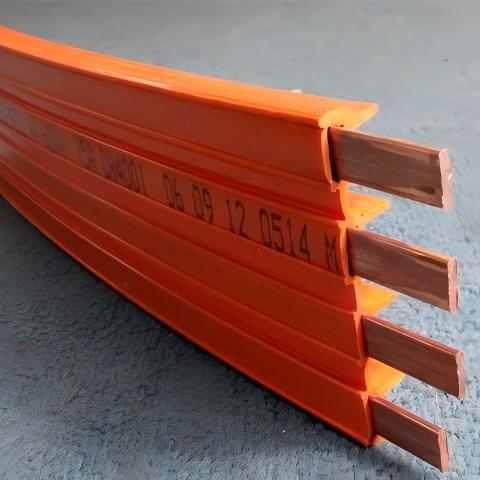

Long service life, the conductor sheath also adopts a unique formula, which greatly prolongs the service life of the conductor system
FEATURE 2
Safe and reliable, even if it is touched by fingers, there is no risk of electric shock, in line with IP23 standard
FEATURE 3

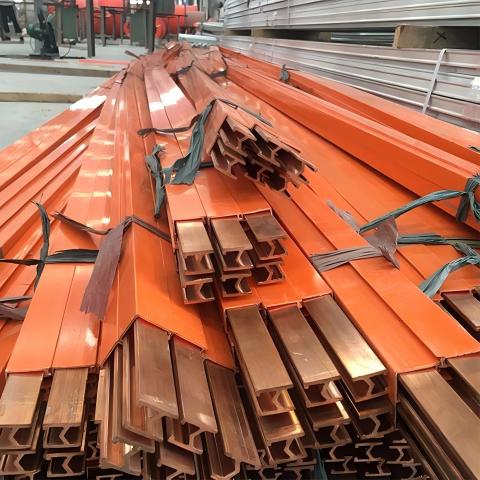

Energy saving and consumption reduction, using special formula aluminum alloy profile as conductor, small resistance, can minimize the loss of electric energy
FEATURE 4
Adopt combination design, easy to install and daily maintenance, especially suitable for high-altitude work
Technical Data
| Poles | Conductor cross section(mm2) | Max. current(A) |
| 3 | 3*10 | 50A |
| 3 | 3*15 | 80A |
| 3 | 3*20 | 100A |
| 3 | 3*25 | 120A |
| 3 | 3*35 | 140A |
| 4 | 4*10 | 50A |
| 4 | 3*15+1*10 | 80A |
| 4 | 3*20+1*10 | 100A |
| 4 | 3*25+1*12.5 | 120A |
| 4 | 3*25+1*15 | 140A |
| 6 | 6*10 | 50A |
| 6 | 6*15 | 80A |
| 6 | 6*20 | 100A |
