Description

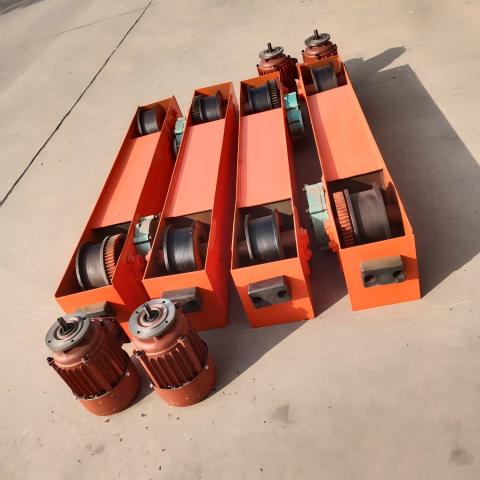

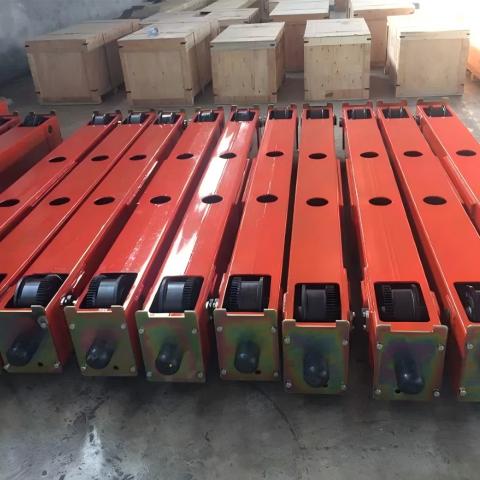

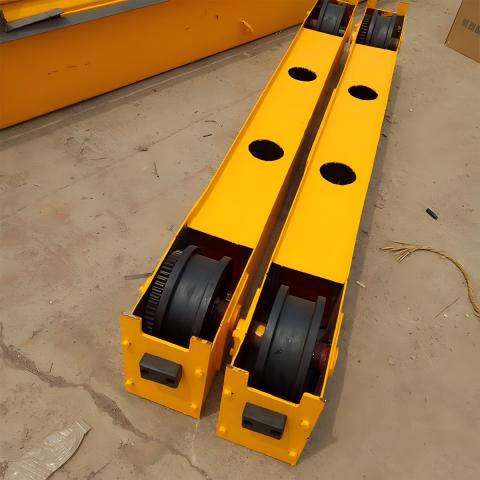

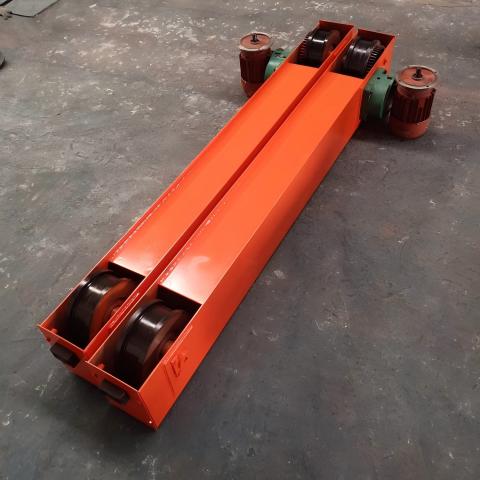

The end beam of a crane is a device that supports the movement of things.

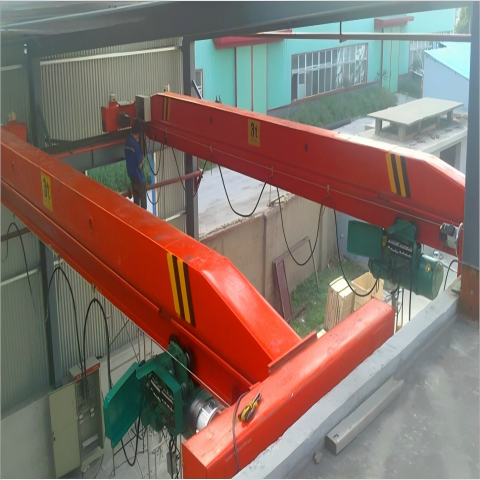

The end beam is equipped with wheels at both ends to support the bridge running on an elevated platform.
The main beam is welded with tracks for the operation of the lifting trolley.
Working Condition
Working temperature:-10°C~40°C
Features
FEATURE 1
Simple and fast handling
FEATURE 2
The angle bearing wheel group of the crane end beam can be removed for easy maintenance and adjustment
FEATURE 3
No need to remove additional components
Technical Data
| End carriage model | Application of crane model | Rectangular steel tube | Wheel size | Motor power |
| L125-20 | 1t-11.5m | 150*150*6 | W125*60 | 0.3KW*2 |
| L160-25 | 2t/3t-16.5m | 150*200*8 | W160*70 | 0.4KW*2 |
| L200-30 | 5t-22.5m | 150*250*8 | W200*70 | 0.4KW*2 |
| 0.75KW*2 | ||||
| L250-35A | 10t-28.5m | 200*250*8 | W250*80 | 0.75KW*2 |
| 200*300*8 | 1.1KW*2 | |||
| 1.5KW*2 | ||||
| L315-30 | 20t-16.5m | 200*400*8 | W315*90 | 1.5KW*2 |
