Description

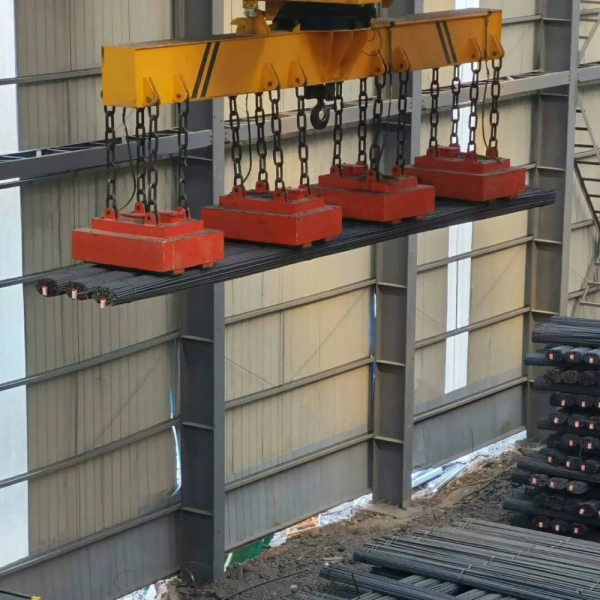

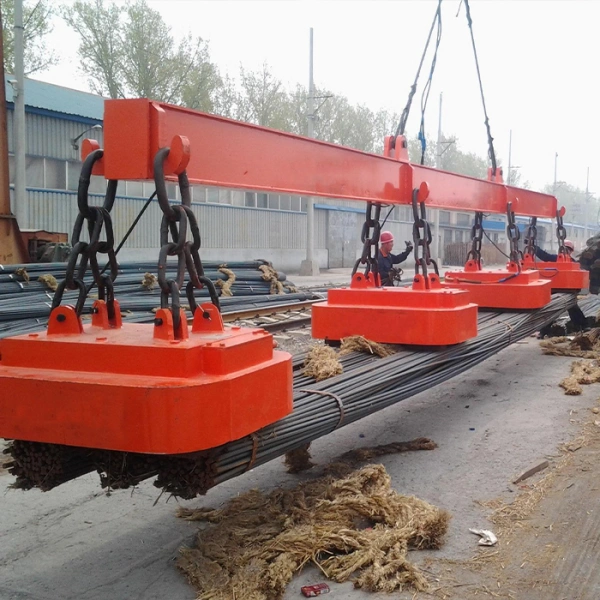

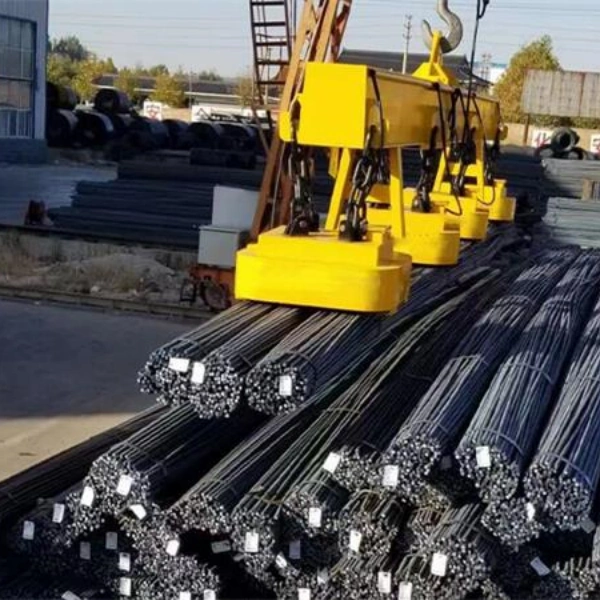

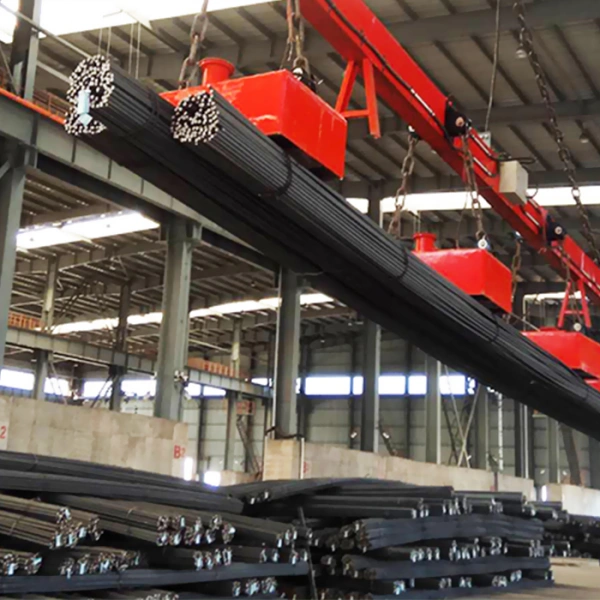

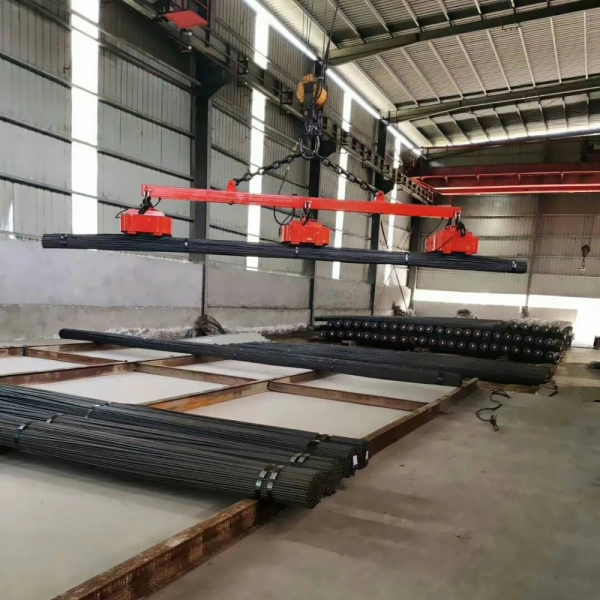

The MW38 series electromagnets use a unique magnetic circuit structure, which has the characteristics of good heat dissipation, deep magnetic permeability, and the ability to penetrate multiple air gaps. They can be used to lift bars, flat iron, angle steel, etc. that have not been bundled or have only been simply bundled. It can improve the problem of large winding when lifting materials such as small round steel and threaded steel. There are room temperature and high temperature types. Due to the use of two or more linked cranes, the connection between them and the hanging beam often adopts a structure with two or four lifting points.
Working Condition
- The main basis for selecting electromagnetic suction cups is the material being sucked;
- When transporting waste steel, it involves the degree of loose stacking, blockiness, material quality, working frequency, and temperature data of the materials;
- When transporting finished materials, it involves the external dimensions, material degree, material quantity, working frequency, and temperature data of the materials;
- When the temperature of the transported material is below 100 ℃, a normal temperature suction cup should be selected. When the temperature exceeds 100 ℃, choose a high-temperature resistant suction cup. Please specify when the temperature exceeds 600 ℃;
- When the duration of power on exceeds 60%, choose high-frequency suction cups;
- When absorbing materials in water, choose submersible suction cups (diving depth<100m). Due to the similarity between submersible suction cups and room temperature suction cups, please specify when placing an order.
- Equipment supporting electrical appliances: When using a single suction cup, select rectification control equipment and auxiliary equipment according to the energy consumption power (current); When multiple suction cups are used in combination, the total energy consumption power (current) based on the number of connected units and selection;
- Select appropriate electromagnetic suction cups based on the difficulty level of the material being sucked and the actual situation, while also considering the changes in the type and chemical properties of each batch of materials, and whether seasonal humidity has an impact on the suction of suction cups during transportation.
Features
FEATURE 1
Adopting a fully sealed structure with good moisture-proof performance;
FEATURE 2
Through computer optimization design, the structure is reasonable, the weight absorption ratio is high, and the energy consumption is low;
FEATURE 3
The excitation coil has undergone special process treatment, which improves the electrical and mechanical properties of the coil. The insulation material has a heat resistance level of C and a long service life;
FEATURE 4
Adopting different structures and parameters for different conditions of the sucked materials can widely meet the needs of users;
FEATURE 5
The high-temperature electromagnetic suction cup adopts a unique insulation method, which enhances the heat resistance adaptation range of the electromagnetic suction cup;
FEATURE 6
Easy installation, operation, and maintenance.
Technical Data
| Model | Cold-state Power(KW) | Cold-State Current(A) | Overall Dimension (mm) | Mass(kg) | Capacity of lifting bundled bar | ||||||||
| Material specs | Units | Bundles | |||||||||||
| A | B | C | D | E | F | G | |||||||
| MW38-10095L/1 | 7.9 | 35.9 | 1000 | 950 | 1050 | 500 | 110 | 180 | 30 | 1510 | Length 12m Diameter 400mm Weight 3.5t | 4 | 2 |
| MW38-14095L/1 | 10.9 | 49.5 | 1400 | 1100 | 600 | 110 | 180 | 35 | 2090 | 3 | |||
| MW38-17095L/1 | 13.2 | 60 | 1700 | 1150 | 700 | 110 | 180 | 40 | 2530 | 4 | |||
| MW38-110100L/1 | 8.9 | 40.5 | 1100 | 1000 | 1100 | 500 | 110 | 180 | 35 | 1920 | 3 | 2 | |
| MW38-140100L/1 | 10.5 | 47.7 | 1400 | 1150 | 600 | 110 | 180 | 40 | 2390 | Length 9m Diameter 400mm Weight 4t | 3 | ||
| MW38-170100L/1 | 13.4 | 60.9 | 1700 | 1150 | 700 | 125 | 200 | 45 | 2910 | 4 | |||
| MW38-110110L/1 | 9.1 | 41.4 | 1100 | 1100 | 1150 | 600 | 110 | 180 | 40 | 2350 | 2 | 2 | |
| MW38-140110L/1 | 11.1 | 50.5 | 1400 | 1200 | 600 | 125 | 200 | 45 | 3020 | 3 | |||
| MW38-170110L/1 | 13.5 | 61.4 | 1700 | 1250 | 700 | 125 | 200 | 50 | 3630 | 4 | |||
Spare Parts
Lifting Magnet
A device with an iron core inside and using a coil with current to make it magnetic like a magnet is called an electromagnet. The iron core should be made of soft iron or silicon steel that is easy to magnetize and easy to lose magnetism. This type of electromagnet has magnetism when powered on, but disappears when powered off. Electromagnets have extremely wide applications in daily life. The invention of electromagnets also greatly increased the power of generators.
Electrical control cabinet
The Electrical control cabinet adopts a three wire two phase half wave rectification method, and uses the energy storage of the electromagnet to control reverse demagnetization during discharge. This product has the characteristics of simple circuit, compact structure, small volume, and light weight. DKP-A is a three wire two half wave rectifier control equipment. When the grid voltage is too high or too low, adjusting the potentiometer can adjust the output voltage within 170-240V, so that the output voltage is basically close to 220V.
Cable drum
Cable reel is a cable winding device that provides power, control power, or control signals for large mobile devices. It is applied to heavy machinery equipment such as port gantry cranes, container cranes, ship loaders, tower cranes, and other similar working conditions.
