Description

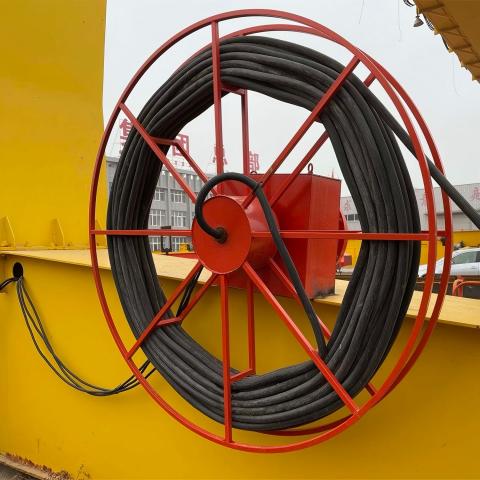

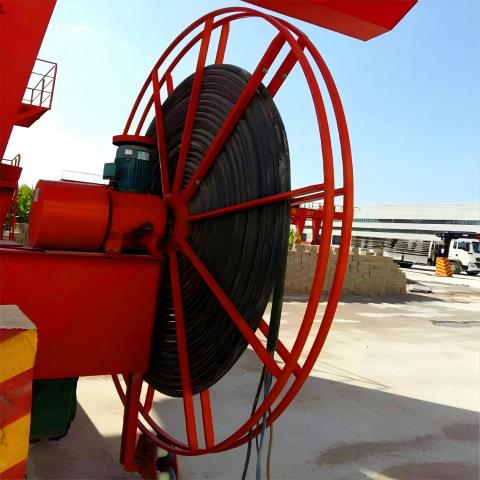

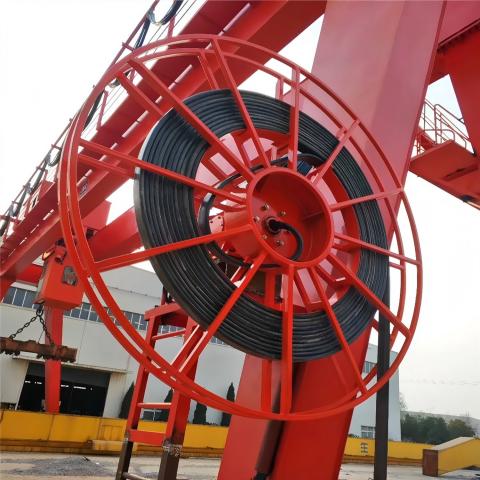

The cable reel of the hysteresis motor has a constant torque output, and the motor must be started synchronously with the walking mechanism of the main engine. When the main engine stops, the drum motor can be delayed and powered off according to the sliding situation of the large vehicle. If multiple hysteresis drives are used, it is necessary to ensure that the motor turns uniformly and meets the ordering requirements. That is, when the cart is moving and the drum motor is powered on, the phase sequence of the drum motor remains unchanged regardless of whether it is in the forward or reverse direction; The crane stopped and the drum motor delayed power-off
Working Condition
1.The working temperature range is -30 ℃ to 40 ℃.
2. The altitude should not exceed 2000m.
3. Working System: Continuous.
4. Rated voltage: DC 220V, AC 380V.
5. It can be used both indoors and outdoors, and a rain proof and sun proof ceiling should be attached for outdoor use.
Features
FEATURE 1
Simple structure, convenient for debugging, installation, and maintenance.
FEATURE 2
The motor drum technology is used for the final stage of the drum transmission system, with low speed and no heating phenomenon
FEATURE 3
The cable tension can be adjusted to protect the cable, but it is not advisable to use axial single row to avoid excessive noise.
Technical Data
| Model | 10mm² | 16-m² | 25mm² | |||||||||
| JQ-15-l | 25 | 20 | 15 | |||||||||
| JQ-30-l | 45 | 40 | 30 | |||||||||
| JQ-60-l | 75 | 70 | 60 | |||||||||
| JQ – | | | ||||||||||||
| Model | 10mm² | 16mm | 25mm² | |||||||||
| JQ-15-1 | 25 | 20 | 15 | |||||||||
| JQ-30-1 | 45 | 40 | 30 | |||||||||
| JQ-60-l | 75 | 70 | 60 | |||||||||
| Model | E | F | D1 | D2 | M | N | P | H | G(kg) | |||
| JQ-15-1 | 80 | 83 | 350 | 550 | 250 | 300 | 360 | 325 | 150 | |||
| TQ-30-1 | 80 | 83 | 400 | 650 | 250 | 800 | 360 | 375 | 170 | |||
| JQ-60-1 | 80 | 83 | 400 | 750 | 250 | 300 | 360 | 425 | 210 | |||
