Description

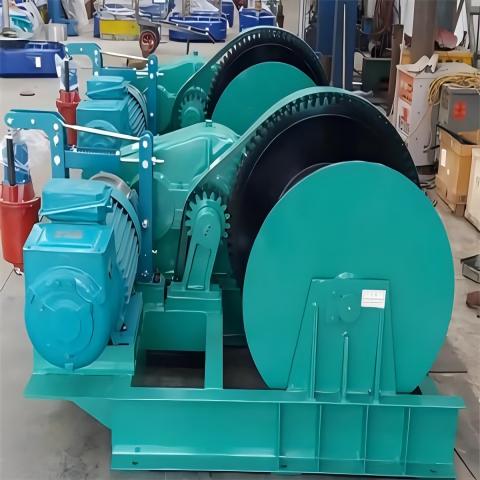

JM type electic winch is an electric crane with small volume, light weight, heavy lifting capacity, flexible operation, safety and reliability, and durability. This machine is widely used in construction sites of enterprises such as buildings, bridges, ports, power plants, metallurgy, and mines. In addition to being widely used as a winch in material lifting and large-scale lifting projects, it can also drag various materials and equipment on slopes or flat surfaces.
Working Condition
1. Choose installation location: An electric hoist should be installed in a flat, sturdy, and obstacle free location. The ground should have sufficient load-bearing capacity to withstand the weight of the winch and its load.
2. Fixed installation base: In order to prevent the winch from moving or tilting during operation, it must be installed on a fixed base. The base should be made of sturdy materials and fixed to the ground by bolts or steel nails.
3. Installation and adjustment: During the installation process, correct and stable installation should be carried out according to the specific type and specifications of the winch, ensuring the completeness, correct assembly and adjustment of accessories to ensure the normal operation of the winch
4. Grounding protection: The power cord of the electric hoist must be grounded to ensure personal safety. Grounding can be achieved by installing a grounding rod to connect the power cord
Connect to the grounding rod. 5. Environmental requirements: The electric coupon hoist should be installed in a dry, non corrosive gas, and well ventilated environment. Avoid installing it in damp, acid-base environments, or flammable places.

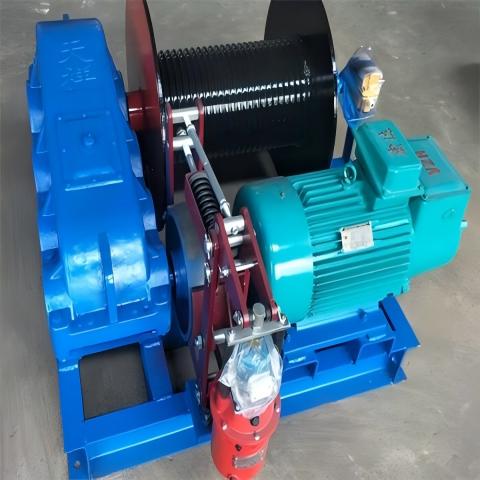

Features
FEATURE 1
The JM series industrial hoist is a new type of hoist that adopts planetary transmission with few tooth differences.
FEATURE 2
It is currently an ideal product for updating and metabolizing traditional hoists.
FEATURE 3
It has the advantages of compact structure, smooth operation, convenient operation, simple maintenance, low noise level, and long service life.
Technical Data
| Electric control winch | JM12 | JM15 | JM18 | JM20 | JM25 |
| Rated tensile force KN | 120 | 150 | 180 | 200 | 250 |
| Rated rope speed m/ | 24 | 11.5 | 10 | 10 | 9 |
| Min | p34 | φ40 | φ36 | φ38 | 4 |
| Steel rope diameter mm | p450 | φ600 | p650 | p700 | φ800 |
| Drum diameter mm | 650 | 800 | 400 | 600 | 400 |
| Rope capacity m | YZR250M1-8 | YZR280M-10 | YZR280S-8 | YZR280M-8 | YZR280M-8 |
| Motor model | 37 | 45 | 45 | 55 | 55 |
| Motor power kw | JZQ650 | JZQ750 | JZQ750 | JZQ850 | JZQ850 |
| Reducer model | YWZ4-40 0/50 | YWZ4-40 0/80 | YWZ4-40 0/80 | YWZ4-40 0/80 | YWZ4-400/80 |
| Brake model | 2020×230 0×1600 | 2340×257 0×1770 | 3040×235 0×2100 | 3140×240 0×2160 | 3140×2400×2 100 |
| External dimensions mm | 5500 | 7500 | 9000 | 10000 | 11500 |
Spare Parts
Steel wire rope drum

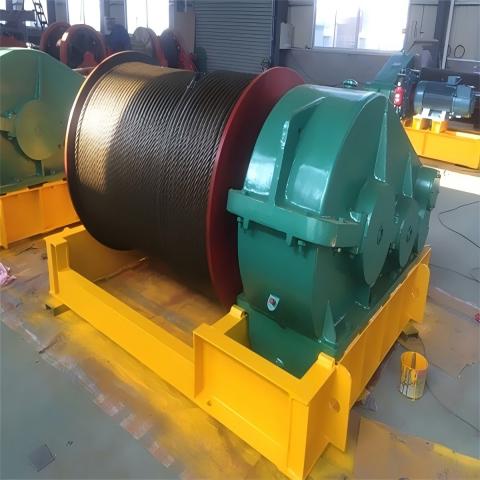

The drum is one of the core components of the hoist, and its main function is to rotate and roll the steel wire rope. The drum is directly installed on the output shaft of the reducer and rotates through gear transmission. During the operation of the hoist, the steel wire rope is wound around the drum. After starting the hoist, the drum begins to rotate, thereby achieving the pulling of the steel wire rope.

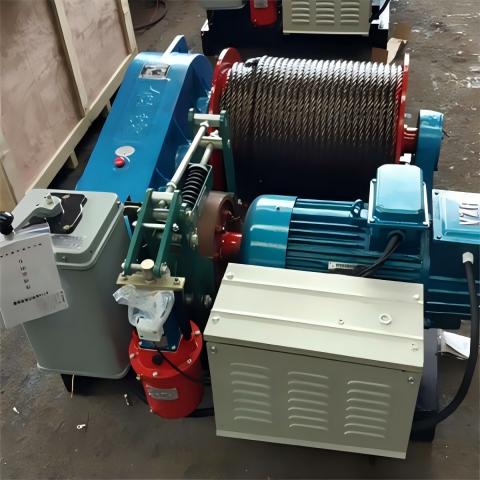

Steel wire rope
The steel wire rope of an electric hoist is the main component for lifting and pulling heavy objects. The steel wire rope is directly used for the lifting work of the winch, and it must also be able to withstand the weight of heavy objects and changes in the center of gravity. During lifting work, the stress on the steel wire rope is very high, and high-quality and high-strength steel wire ropes are usually used.
