Description

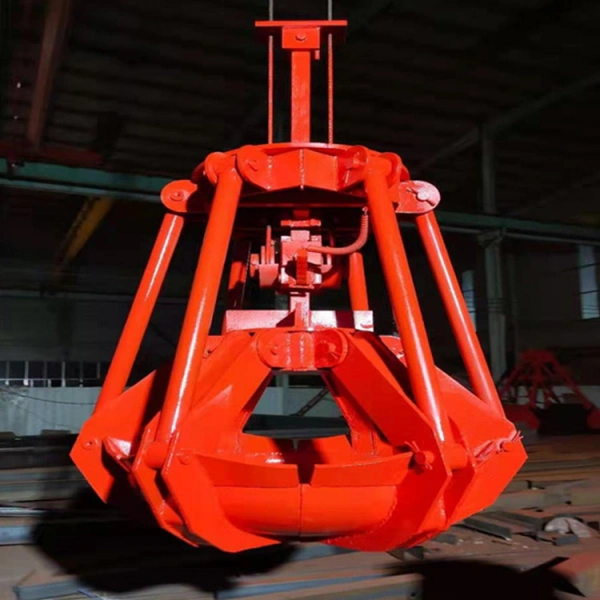

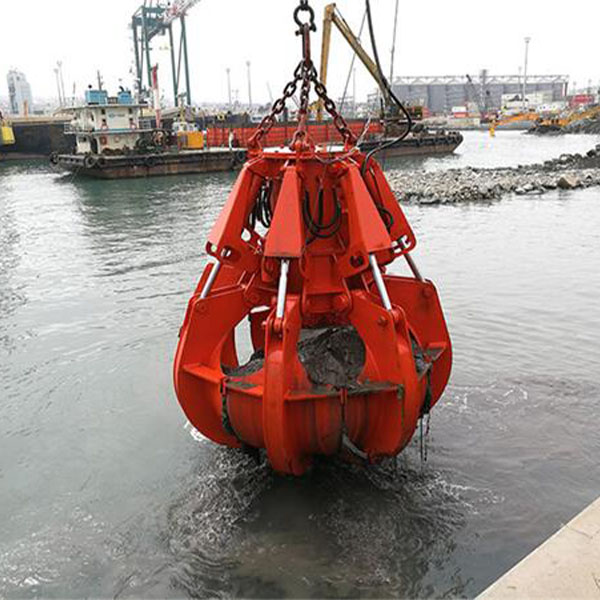

The grab bucket refers to a special tool used by a crane to grab dry bulk cargo. The container space is composed of two or more bucket-shaped jaw plates that can be opened and closed. When loading, the jaw plates are closed in the material pile, and the materials are captured into the container space. When unloading, the jaw plates are in the material pile. It is opened in the suspended state, and the materials are scattered on the pile. The opening and closing of the jaw plate is generally controlled by the wire rope of the crane lifting mechanism. The grab operation does not require heavy physical labor, can achieve high loading and unloading efficiency and ensure safety. It is the main dry bulk cargo loading and unloading tool in the port.
Working Condition
- Before operating the bucket truck, check the working site and surrounding environment to ensure safety; clean the surface of the bucket truck; check whether the power supply and equipment are normal.
- Start the bucket truck: Operate the bucket truck switch according to the on-site command requirements to start the bucket truck.
- Use the operating grab to carry out operations, and follow instructions to complete the entry and exit of materials, as well as stacking and cutting.
- After the operation is completed, return the grab bucket, turn off the power of the bucket truck, clean the work area, and make records.
Features
FEATURE 1

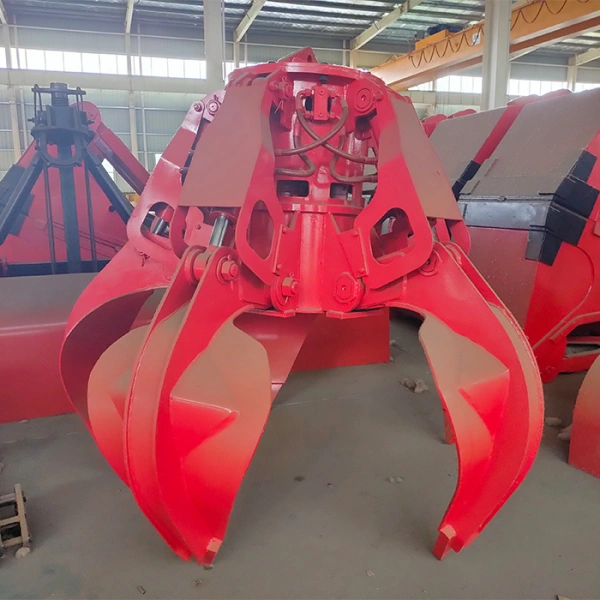

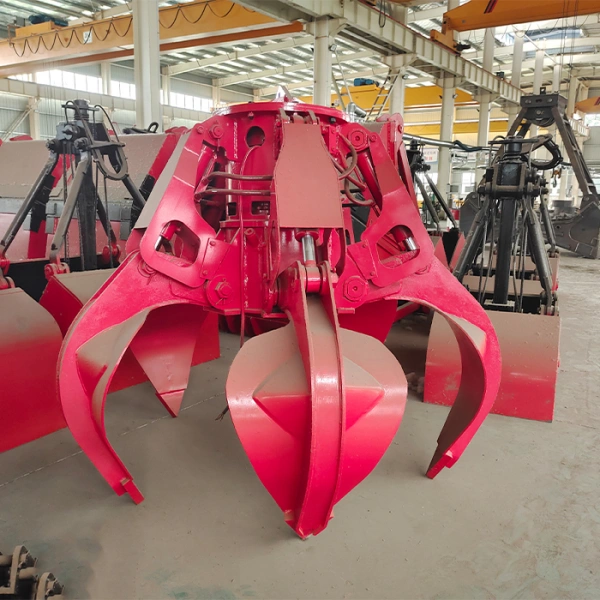

Powerful Gripping Capability: The hydraulic multi-flap grab has a unique design that allows it to securely grip various shapes and sizes of cargo, including bulk materials, waste, and construction materials, making it an ideal tool for handling diverse types of goods.
FEATURE 2
Precise Control: The hydraulic system provides precise control, enabling operators to adjust the grab’s opening and clamping force with precision. This helps prevent damage to cargo and unnecessary waste.
FEATURE 3
Efficient Operating Speed: The hydraulic multi- flap grab can quickly open and close, thereby enhancing the efficiency of lifting and handling operations. This is particularly beneficial for applications that require rapid cargo handling.
FEATURE 5
Strong Adaptability: The hydraulic multi- flap grab is suitable for various working environments and application scenarios, whether in ports, construction sites, or waste processing facilities, making it capable of handling a wide range of tasks. Its versatility makes it widely applicable across different industries.
Technical Data
| Model | Volume (m³) | Self-weight (ton) | Crane capacity (ton) | Motor power (kw) | Operating pressure (Bar) | Close time (S) |
| DYZ3-1.5 | 0.5 | 1.5 | 3.2 | 11 | 180 | 10 |
| DYZ3-1.6 | 0.6 | 1.7 | 3.2 | 11 | 180 | 11 |
| DYZ5-2.0 | 0.8 | 2.0 | 5 | 15 | 180 | 13 |
| DYZ5-2.5 | 1.0 | 2.5 | 5 | 15 | 180 | 14 |
| DYZ10-4.2 | 2.0 | 4.2 | 10 | 22 | 200 | 16 |
| DYZ5-2.6 | 2.5 | 2.6 | 5 | 18.5 | 180 | 17 |
| DYZ10-3.8 | 3.0 | 3.8 | 10 | 18.5 | 180 | 20 |
| DYZ10-4.3 | 5.0 | 4.3 | 10 | 22 | 200 | 19 |
| DYZ16-5.5 | 2.5 | 5.5 | 16 | 30 | 200 | 16 |
| DYZ16-5.6 | 8.0 | 5.6 | 16 | 30 | 200 | 19 |
| DYZ20-7 | 4.0 | 7 | 20 | 37 | 200 | 17 |
