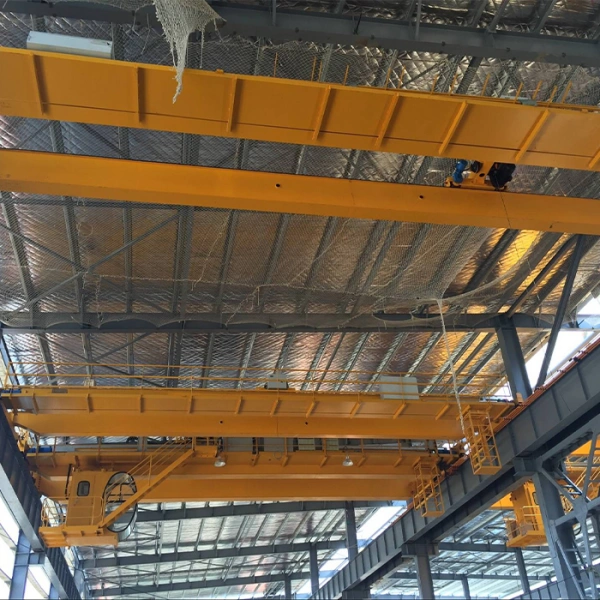

Description

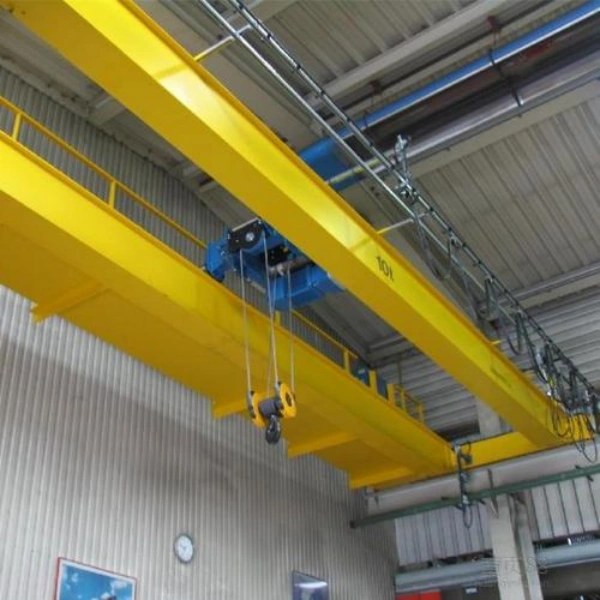

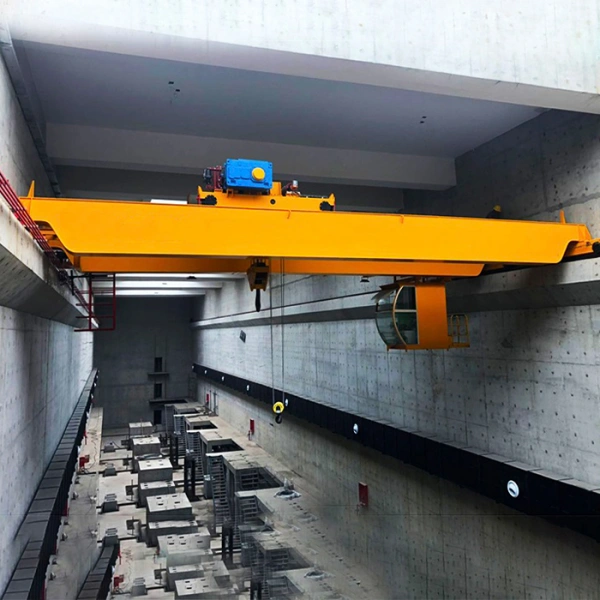

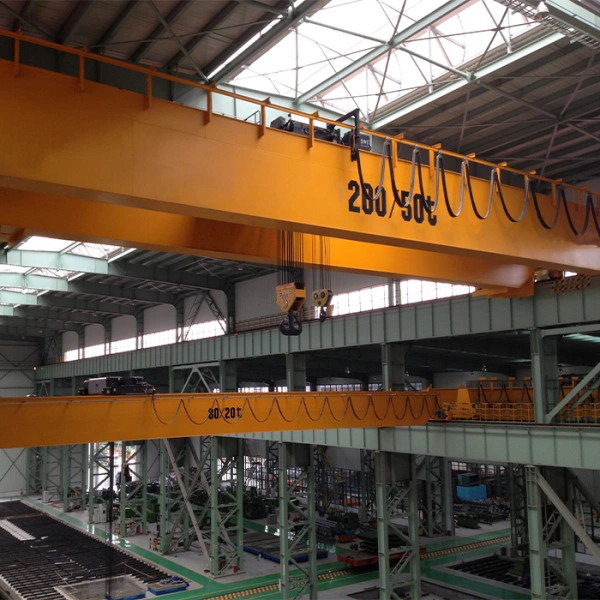

HD European electric double girder bridge crane widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port and wharf, logistics and other places. The main beam employs bias-rail box-type structure and connects with end beam by high-strength bolt ensuring easy transportation. The professional processing equipment ensure the connection accuracy of main end beam, making crane run steadily.
Working Condition
- .Metal structures and mechanical parts should have sufficient strength, stiffness and buckling resistance.
- It is required that parts and metal structures are not damaged after being loaded. For parts such as steel wire ropes with complex stress states, static strength calculations are usually carried out based on the main load and main deformation form, and a higher safety factor is used. It must also be required that the deformation of the component under the action of the load is within the allowable range, that is, There should be sufficient stiffness. Second, the whole machine must have the necessary stability against overturning.
- The prime mover has the power to meet the operating performance requirements, and the braking device should provide the necessary braking torque.
Features
FEATURE 1
High load capacity: The design and structure of the European double beam crane enable it to carry larger loads. They usually have higher load capacity than other cranes. This means they can be used in heavier industrial, construction, or manufacturing fields.
FEATURE 2
High stability: The European double beam crane has higher stability and better balance ability. This is due to its double beam design and wider beam span. This design makes the European double beam crane more stable and balanced during transportation or unloading of heavy objects, thereby reducing the risk of accidents.
FEATURE 3
Long service life: European double beam cranes typically use high-quality materials and manufacturing processes to provide them with a longer service life. This means they require less maintenance and repairs, thereby reducing downtime and costs.
FEATURE 4
Strong adaptability: The European double beam crane can adapt to various working scenarios and load requirements. They can be customized according to different applications to meet different needs. For example, they can be installed at different heights and angles to meet different work requirements.
Technical Data
| Capacity (t) | Span (m) | Lifting height (m) | Working group | Lifting speed (m/min) | Vehicle weight (t) | Track | Power rate (kW) |
| 5 | 10.5-31.5 | 22 | A5 | 10.5 | 4.7-17.6 | 38kg/m | 8.24 |
| 10 | 10.5-31.5 | 16.5 | A5 | 5.3 | 4.9-22.4 | 38kg/m | 12.58 |
| 16 | 10.5-31.5 | 13 | A5 | 3.9 | 7.4-24.6 | 38kg/m | 21.5 |
| 20 | 10.5-31.5 | 13 | A5 | 3.8 | 8-28.3 | 38kg/m | 21.5 |
| 25 | 10.5-31.5 | 13 | A5 | 3.9 | 9.4-32.2 | 38kg/m | 28 |
| 32 | 10.5-31.5 | 13 | A5 | 3.8 | 10.4-34.5 | QU70 | 28.2 |
| 40 | 10.5-31.5 | 14.5 | A5 | 3.25 | 13.6-38.1 | QU70 | 41 |
| 50 | 10.5-31.5 | 12.5 | A5 | 2.9 | 14.6-40.1 | QU70 | 49 |
| 63 | 10.5-31.5 | 17 | A5 | 3.3 | 23.2-63.2 | QU80 | 53.4 |
| 80 | 10.5-31.5 | 15 | A5 | 3.3 | 18.5-69 | QU80 | 77 |
Spare Parts

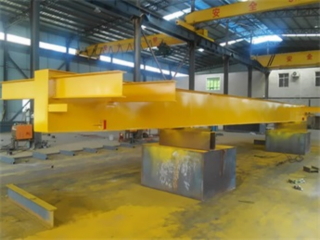

Main beam
The main beam is a box beam or H-beam structure, welded and formed from steel plates. The steel plate material is domestic steel (Q235B). The vertical winding is in accordance with Chinese national standards. All steel plates are subjected to shot blasting pre-treatment to achieve Sa2.5 level standardization. Before welding, the steel plates are carefully inspected and cleaned, usually by automatic welding machines (MIG or semi-automatic welding).

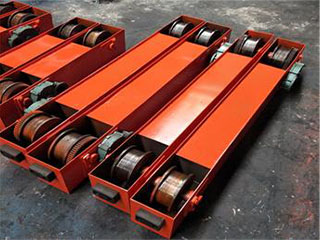

End beam
End beam is a supporting structure designed for lifting machinery, usually located at both ends of the crane, and its function is to provide stable support and balance for the crane. Cranes need to bear enormous weight and inertial forces during operation. Without the support of end beams, the crane is prone to imbalance or even overturning. Therefore, the role of the crane end beam cannot be ignored, as it is one of the key components for the safe operation of the crane.

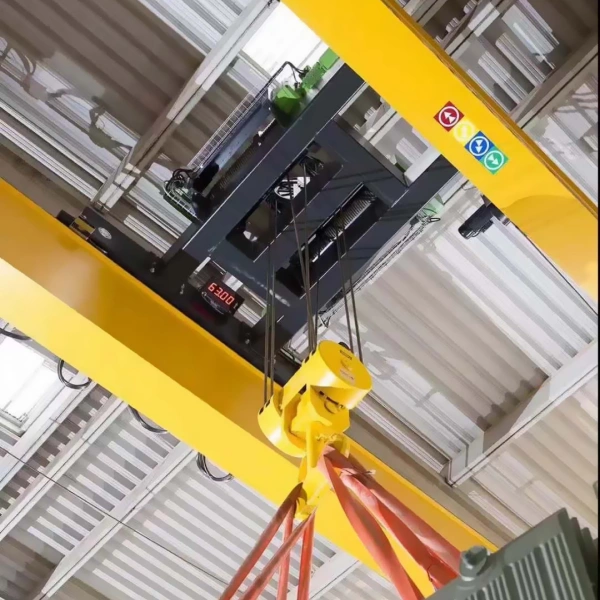

Electric hoist
The electric hoist will do dynamic and static load tests, as well as ascending and descending pressure tests. The baking paint process is used to enhance the adhesion of the paint film and improve the appearance quality. The assembly line ensures product quality.
Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.
Crane control box
The surface of the control box has undergone anti-corrosion treatment Reasonable layout for easy maintenance Protection level IP55 Environmental temperature:<45 ° C, humidity<90%
