Description
The fixed column jib crane is a new generation of lightweight lifting equipment made to adapt to modern production. The fixed column jib crane, combined with a reliable chain electric hoist, is particularly suitable for short distance, frequent use, and intensive lifting operations. It is an energy-saving and practical material lifting equipment. It can be widely used for loading and unloading goods on production lines, assembly lines, and machine tools in factories, mines, workshops, as well as for lifting heavy objects in warehouses, docks, and other occasions.
Working Condition
- Working temperature: -20~+40 ℃
Features
FEATURE 1
High load capacity: The design and structure of the European double beam crane enable it to carry larger loads. They usually have higher load capacity than other cranes. This means they can be used in heavier industrial, construction, or manufacturing fields.
FEATURE 2
Energy saving, trouble saving, small footprint, easy to operate and maintain, etc

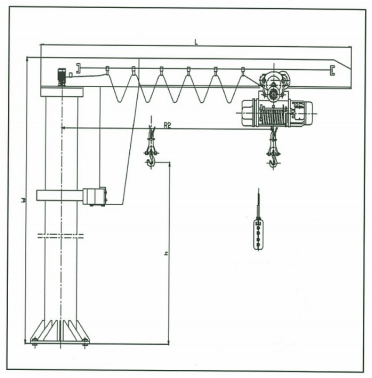

Technical Data
| Model | Lifting weight | Hoisting speed(CD wire rope hoist) | Rotation speed(r/min) | Arm length L(mm) | R2(mm) | R1(mm) | H(mm) | h(mm) |
| ZB-A0.25-D/S | 0.25T | 8(m/min) | 0.92 | 5425 | 5000 | 1000 | 5100 | 4000 |
| ZB-A0.5-D/S | 0.5T | 0.92 | 5425 | 5000 | 1000 | 5100 | 4000 | |
| ZB-A1-D/S | 1T | 0.76 | 5500 | 5000 | 1000 | 5100 | 4000 | |
| ZB-A2-D/S | 2T | 0.76 | 3765/5565/6525 | 3300/5000/6000 | 1300/1300/1500 | 4350/5400/4660 | 3000/4000/3500 | |
| ZB-A3-D/S | 3T | 0.59 | 5560 | 5000 | 1500 | 3150 | 3500 | |
| ZB-A5-D/S | 5T | 0.51 | 4680 | 4000 | 1800 | 4770 | 3000 |
Spare Parts
Column
The lower end of the column is fixed to the concrete foundation through anchor bolts.
Slewing arm
The slewing arm can be rotated according to customer needs.
Electric hoist
The electric hoist will do dynamic and static load tests, as well as ascending and descending pressure tests. The baking paint process is used to enhance the adhesion of the paint film and improve the appearance quality. The assembly line ensures product quality.
Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.
