Description

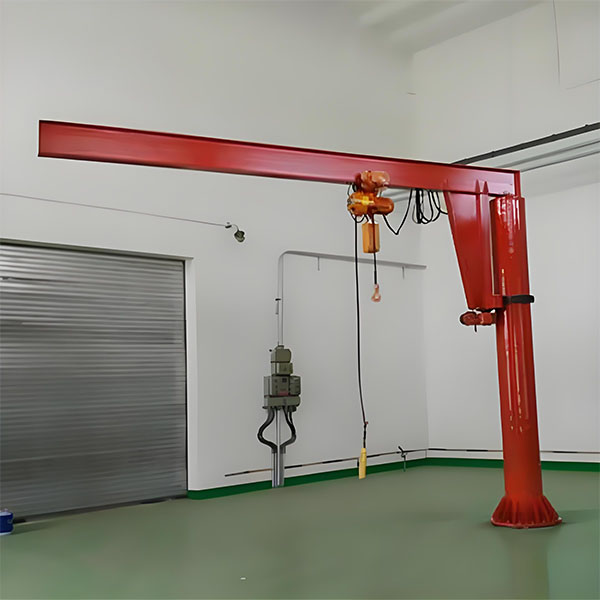

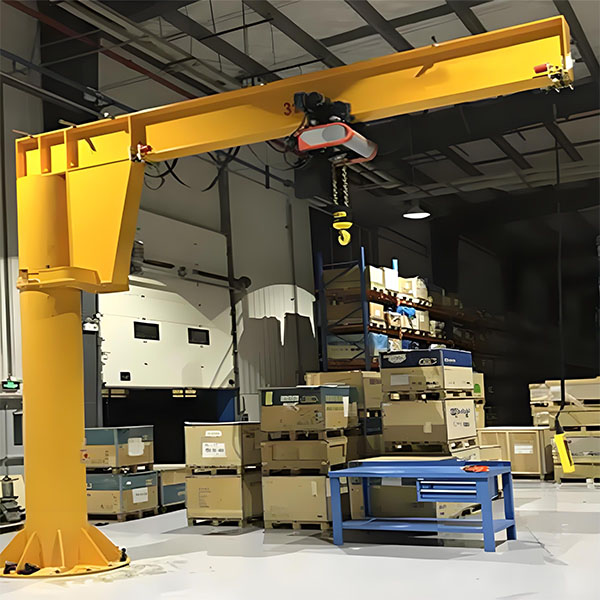

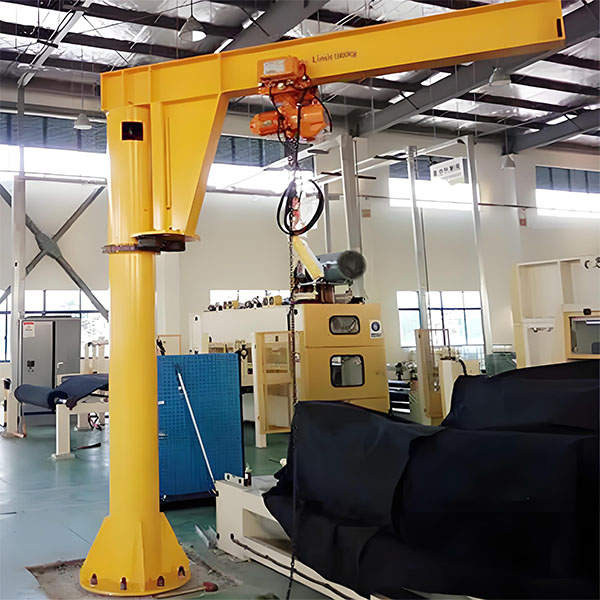

Jib crane is a small and medium-sized lifting equipment developed in recent years. It has a safe and reliable structure. It has the characteristics of high efficiency, energy saving, time saving, labor saving and flexibility. It can be operated freely in three-dimensional space. It is better than other cranes in short-distance and intensive lifting situations. Conventional lifting equipment shows its uniqueness and is widely used in different places in various industries.
Working Condition
- The working environment temperature is -25℃~40℃, and the working level is A3.
Features
FEATURE 1
The top of stand column is provided with rotary support and flexible rotation deformation. Stand column is made of seamless steel tube,light weight,high rigidity and great load.
FEATURE 2
The special engineering nylon wheel with rolling bearings is adopted,small friction and flexible.
FEATURE 3
Compact structure,simple operation,with a variety of electric hoist.
Technical Data
| Mode | BZ0.5 | BZ1 | BZ2 | BZ3 | BZ5 |
| Lifting Capacity (t) | 0.5 | 1 | 2 | 3 | 5 |
| Lifting Height (m) | 3 | 3 | 3 | 4 | 4 |
| Max.horizontal throw (m) | 2.6 | 3-4 | 2.9-3.9 | 3.8 | 3.7 |
| Max.radius of gyration (m) | 3.6 | 4-5 | 4-5 | 5 | 5 |
| Max.overturning moment (t/m) | 3 | 6 | 12 | 18 | 27 |
| Angle of revolution (degree) | 360 | ||||
| Travel speed (m/min) | 20 | ||||
| Lift speed (m/min) | Norma | 8(4) | |||
| Slow | 0.8(0.4) | ||||
| Angle of revolution speed (m/min) | 1 | 0.75 | 0.7 | 0.9 | 0.6 |
Spare Parts
Electric hoist
The electric hoist will do dynamic and static load tests, as well as ascending and descending pressure tests. The baking paint process is used to enhance the adhesion of the paint film and improve the appearance quality. The assembly line ensures product quality.
Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.

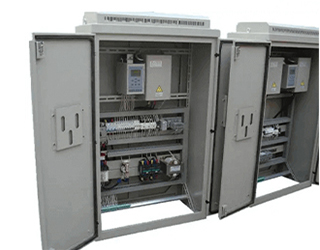

Crane control box
The surface of the control box has undergone anti-corrosion treatment Reasonable layout for easy maintenance Protection level IP55 Environmental temperature:<45 ° C, humidity<90%
