Description

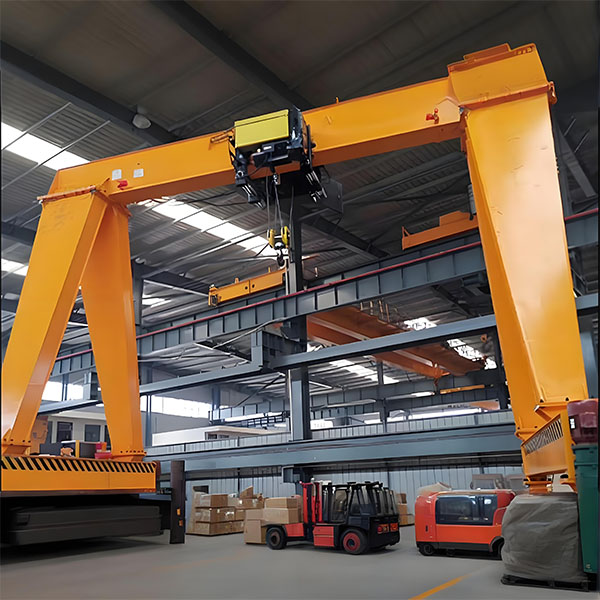

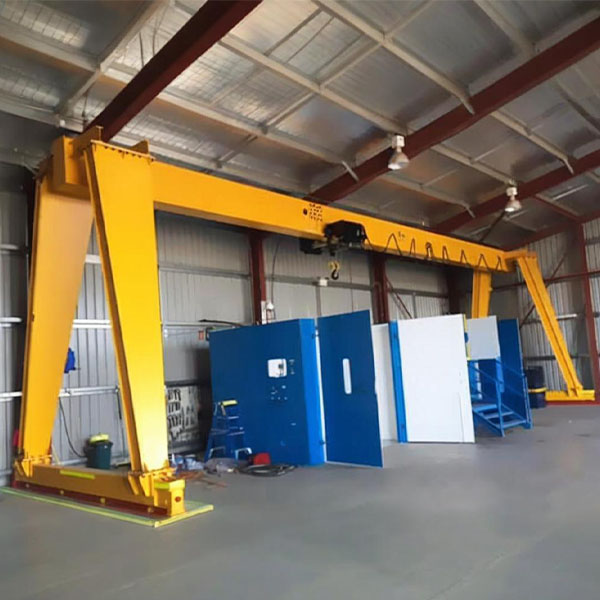

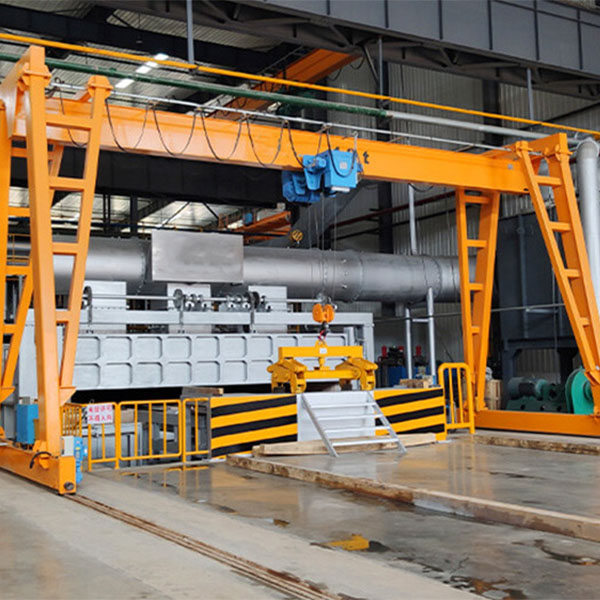

The lifting mechanism of the European-style gantry crane is a European-style electric hoist trolley. The trolley is equipped with a reducer and a three-in-one transmission. The single-girder gantry crane has a simple structure, is easy to manufacture and install, has a small mass, and the main beam is mostly a deflection box frame structure. Single girder gantry crane door legs are available in L-type and C-type. The L-type is easy to manufacture and install, has good stress resistance, and has a small mass. However, the space for lifting goods to pass through the legs is relatively small. The legs of the C-type are made in an inclined or curved shape in order to have a larger lateral space so that the goods can pass through the legs smoothly.
Working Condition
- The working environment temperature is: -25℃~+40℃.
- The relative humidity is not more than 85%, and the altitude is not more than 2000m.
Features
FEATURE 1
Light weight
FEATURE 2
European finite element advanced standard design
FEATURE 3
Three-level drive, high work efficiency
FEATURE 4
Frequency conversion speed regulation technology
Technical Data
| Capacity | t | 3 | 5 | 10 | 16 | |||||||||||||||
| Span | S(m) | 12 | 16 | 20 | 24 | 12 | 16 | 20 | 24 | 30 | 12 | 16 | 20 | 24 | 30 | 12 | 16 | 20 | 24 | 30 |
| Lifting height | 6-18 | 6-12 | 6-12 | 6-12 | ||||||||||||||||
| Lifting speed | m/min | 88/0.8 | 88/0.8 | 77/0.7 | 3.5 3.5/0.35 | |||||||||||||||
| Trolley speed | m/min | 20 | 20 | 20 | 20 | |||||||||||||||
| Crane speed | m/min | 20 | 20 | 20 | 20 | |||||||||||||||
| Work duty | A3-A4 | A3-A4 | A3-A4 | A3-A4 | ||||||||||||||||
| Track type | P24P30P38 | P24P30P38 | P38P43 | P38P43 | ||||||||||||||||
Spare Parts
Electric hoist
The electric hoist will do dynamic and static load tests, as well as ascending and descending pressure tests. The baking paint process is used to enhance the adhesion of the paint film and improve the appearance quality. The assembly line ensures product quality.
Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.
Track system
The surface of the control box has undergone anti-corrosion treatment Reasonable layout for easy maintenance Protection level IP55 Environmental temperature:<45 ° C, humidity<90%
