Description

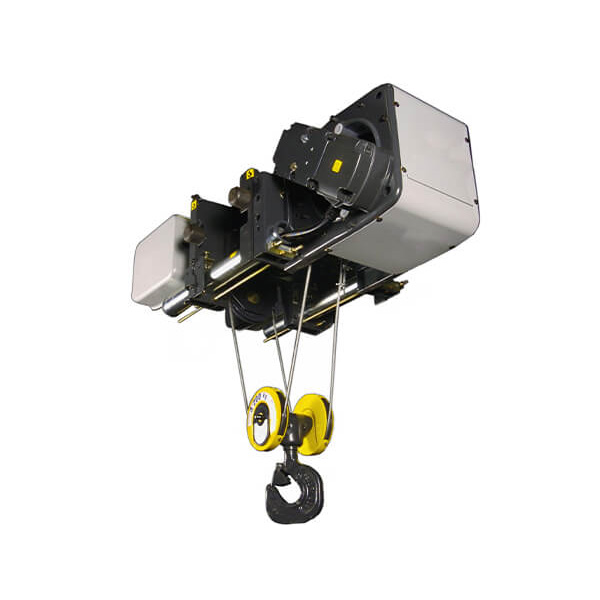

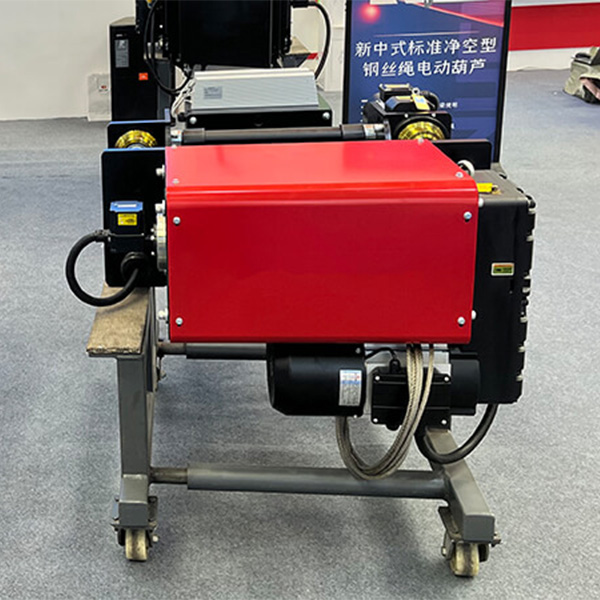

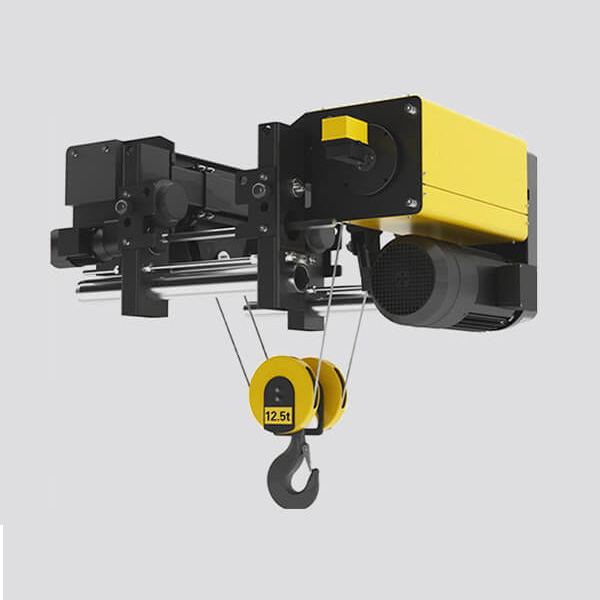

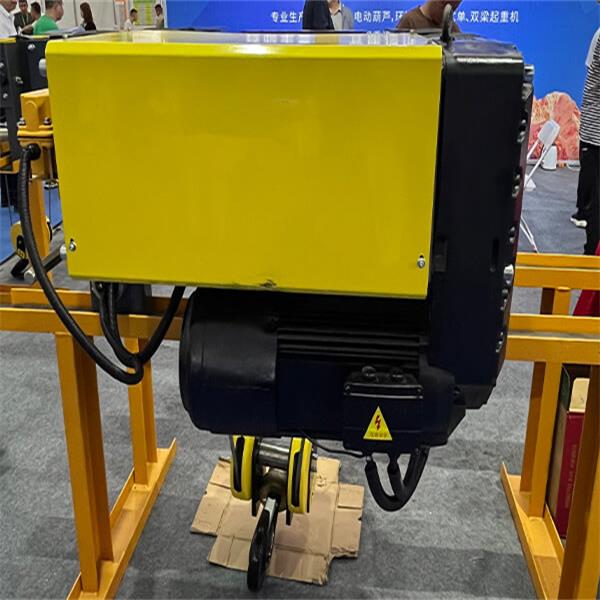

Explosion-proof electric hoist is a light and small lifting equipment. It has light weight, small size and large lifting capacity. When the factory is filled with explosive mixture, it is a favorable tool to improve working conditions and increase labor productivity under the premise of ensuring safety. It is an essential mechanical equipment for production.
Application
Explosion-proof hoists are widely used in dangerous environments such as petroleum, petrochemical, gas stations, oil depots, gas production, chemical industry, military industry, electric power, mining, electronics, and railways where fire and explosion may occur.
Working Condition
- Operating environment: temperature -20℃—40℃; altitude below 1000m; relative humidity 85% (20±5℃).
Features
FEATURE 1
Reasonable structure, light dead weight.
FEATURE 2
Favorable performance, accurate and smooth lifting.
FEATURE 3
Safe and reliable traveling.
FEATURE 4
Low noise, easy operation.
FEATURE 5
Convenient maintenance, high exchangeability for parts and components.
FEATURE 6
Easy maintenance, low maintenance cost
FEATURE 7
Economical and durable
Technical Data
| Model | HB. BCD, BMD | |||||||
| Lifting capacity(t) | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Lifting height(m) | 6/9/12/18/24/30 or specified height | |||||||
| Lifting speed(m/min) | 8 (0.8/8) | 7 (0.7/7) | 3.5 (0.35/3.5) | |||||
| Traveling speed(m/min) | 20 | |||||||
| Power Source | 3PAC 380v，50HZ | |||||||
Spare Parts
Motor
The core part of the electric hoist, used to generate power.
Control system
Includes control buttons and switches, used to control the rise and fall of the electric hoist.
Reducer
The gear is specially treated for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.
Rope drum
Grooved hoist Drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.
Rope guide
Rope guide is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the hoist is in unloaded condition.
Hook block
The hook can rotate 360 degree and has safety latch, safe and reliable.
