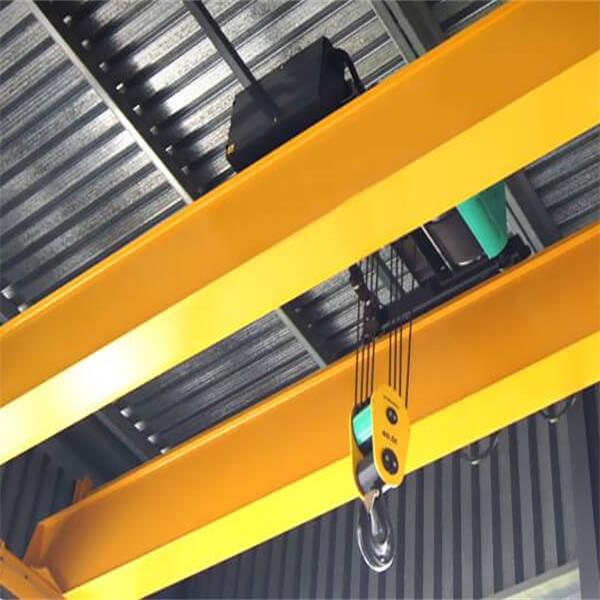

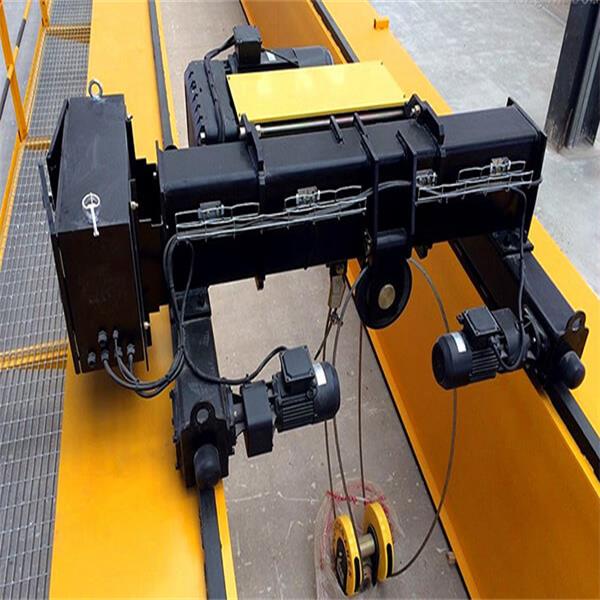

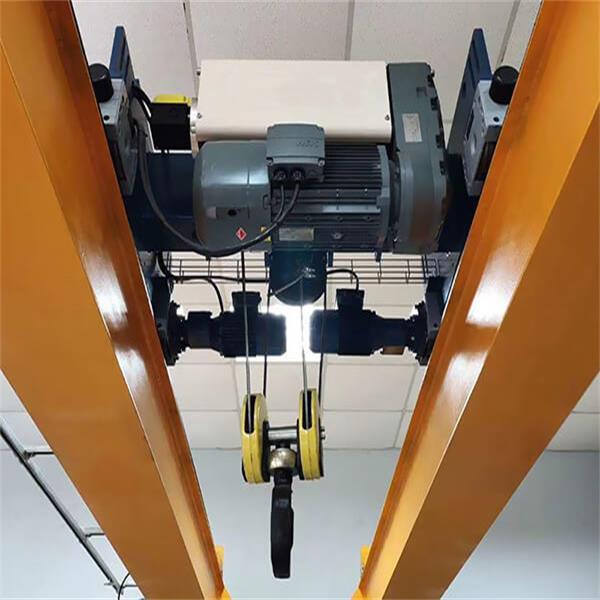

Description
The European double-beam wire rope hoist breaks the design thinking of traditional CD hoists for many years. It takes modular design as the theme. The lifting mechanism adopts planetary gears to transmit speed, making the structure compact and light. It is installed in the drum to effectively reduce the size of the electric hoist. The outer shell adopts a square box structure to change the appearance of the hoist, so that the product can be used in a variety of installation forms. The overall performance of the product is improved, and the cost-effectiveness is fully considered to bring customers more affordable and good products.
Working Condition
- This product is suitable for working in an environment with a temperature of -20℃-+40℃.
Features
FEATURE 1
Accurate positioning, efficient operation, and improved logistics efficiency.
FEATURE 2
The high-quality drive unit ensures safe, stable and efficient operation. The compact structural design ensures that the offset size of the hook is smaller. It provides standard configurations of lifting double speed (variable frequency optional) and trolley variable frequency, ensuring the efficient operation of the crane, the improvement of workshop logistics efficiency, and ensuring that the customer’s various work plans are carried out as scheduled.
FEATURE 3
The specialized technical product has a variety of monitoring and protection functions to ensure the safe and reliable operation of the crane. Its operation monitoring unit can record the operation of the electric hoist, the motor operation status and the safe working cycle in detail, and warn in advance. All records can provide data for maintenance, understand the root cause of the problem, and make the maintenance of the crane more timely and quick.
FEATURE 4
Modular design, low maintenance cost, and complete spare parts service. The concept of modular design has been throughout the design of the entire product, ensuring the standardization and interchangeability of components and greatly reducing the maintenance cost of the product. All product lines of the company have a complete inventory of spare parts, and the professional service team ensures that after-sales service is provided to customers in a timely manner to solve the worries of customers after purchasing equipment.
Technical Data
| Capacity (t) | Working class | Lifting height (m) | Lifting speed (m/min) | Rope reeving | Travelling speed (m/min) | Track distance K(mm) | trolley base distance w(mm) | trolley height B(mm) | hook limit position H(mm) |
| 5 | M5 | 6 | 5/0.8 | 4/1 | 2-20 | 1600 | 1000 | 449 | 350 |
| 9 | |||||||||
| 12 | |||||||||
| 10 | M5 | 9 | 5/0.8 | 4/1 | 2-20 | 1600 | 1000 | 586 | 500 |
| 12 | 1600 | ||||||||
| 15 | 1600 | ||||||||
| 18 | 2000 | ||||||||
| 24 | 2000 | ||||||||
| 16 | M5 | 9 | 4/0.67 | 4/1 | 2~20 | 2000 | 1200 | 747 | 850 |
| 12 | 2000 | ||||||||
| 15 | 2400 | ||||||||
| 18 | 2600 | ||||||||
| 20 | M5 | 9 | 4/0.67 | 4/1 | 2~20 | 2000 | 1200 | 747 | 850 |
| 12 | 2000 | ||||||||
| 15 | 2400 | ||||||||
| 18 | 2600 | ||||||||
| 24 | 3000 | ||||||||
| 32 | M5 | 8 | 2.7/0.45 | 6/1 | 2~20 | 2400 | 1200 | 784 | 900 |
| 10 | 2400 | ||||||||
| 12 | 2400 | ||||||||
| 16 | 2400 | ||||||||
| 32 | M5 | 6 | 0.82~4.9 | 8/2 | 2~20 | 2400 | 1200 | 740 | 1520 |
| 9 | 2400 | ||||||||
| 13.5 | 2800 | ||||||||
| 18 | 3300 | ||||||||
| 50 | M5 | 6 | 0.53~3.2 | 12/2 | 2~20 | 2400 | 1600 | 800 | 1400 |
| 9 | 2800 | ||||||||
| 12 | 3300 | ||||||||
| 15 | 3800 | ||||||||
| 18 | 4200 | ||||||||
| 80 | M5 | 6.5 | 0.5~2.4 frequency conversion | 16/2 | 2~20 | 2900 | 2500 | 951 | 1860 |
| 9 | 3400 | ||||||||
| 11 | 3800 | ||||||||
| 15 | 4500 |
Spare Parts
Motor
The core part of the electric hoist, used to generate power.
Control system
Includes control buttons and switches, used to control the rise and fall of the electric hoist.
Suspension system
Includes wire ropes and suspension components, used to suspend loads.
