Description

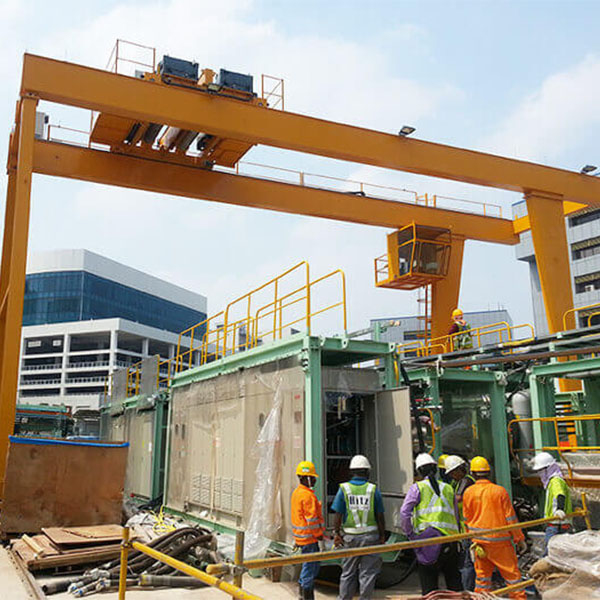

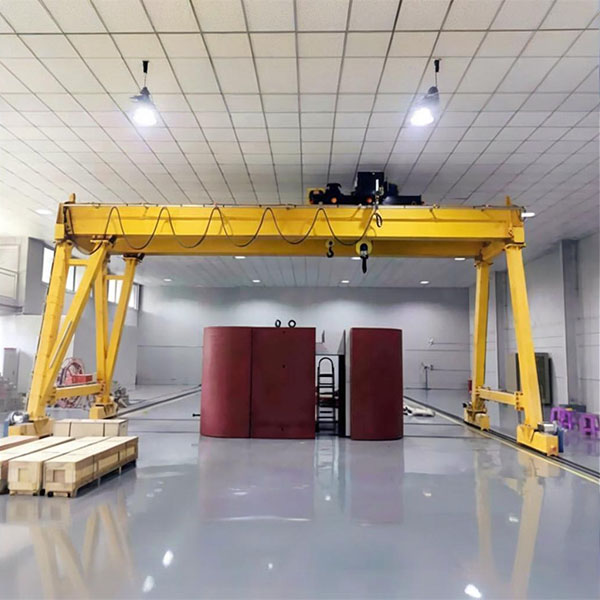

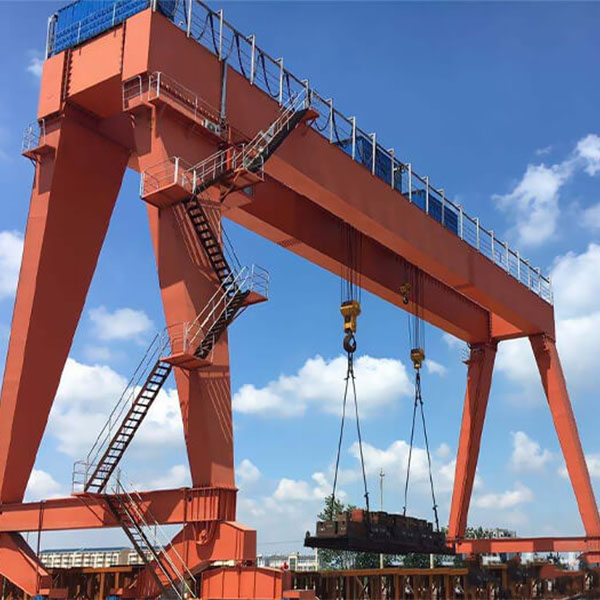

European-style double main girder gantry cranes have strong load-bearing capacity, large spans, good overall stability, and many varieties. However, compared with single main girder gantry cranes with the same lifting capacity, their own mass is larger and the cost is higher. According to the different main beam structures, it can be divided into two forms: box beam and truss. Generally, box-shaped structures are used. This product can be widely used in factories, freight yards, warehouses and other places where goods are loaded and unloaded.
Working Condition
- The working environment temperature is: -25℃~+40℃.
- The relative humidity is not more than 85%, and the altitude is not more than 2000m.
Features
FEATURE 1
Large carrying capacity
FEATURE 2
Good overall stability
FEATURE 3
Self-importance
FEATURE 4
Three-level drive, high work efficiency
Technical Data
| Capacity (ton) | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | |
| Span (m) | 18,22, 24, 26, 30, 35 | ||||||
| Lifting height (m) | 10.11,12 | ||||||
| Working class | A5 | ||||||
| Control way | Cabin control or remote control | ||||||
| Power source | 380V 50HZ 3phase (Could supply it as yours) | ||||||
| Trolley lifting mechanism | |||||||
| Lifting speed (m/min) | Main hook | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 |
| Auxiliary hook | – | – | 14.6 | 15.4 | 15.4 | 10.4 | |
| Trolley traveling mechanism | |||||||
| Traveling speed (m/min) | 37.3 | 35.6 | 36.6 | 36.6 | 37 | 36 | |
| Crane traveling mechanism | |||||||
| Traveling speed (m/min) | 37.3 | 39.7 | 37.3 | 39.7 | 39.4 | 38.5 | |
| Motor power(Kw) | 40.8-51.8 | 41.5-52.8 | 80-77 | 84-81 | 99.3-117.3 | 126.5 | |
| Steel track recommended | 43kg/m | 43kg/m or QU70 | |||||
Spare Parts
Electric hoist
The electric hoist will do dynamic and static load tests, as well as ascending and descending pressure tests. The baking paint process is used to enhance the adhesion of the paint film and improve the appearance quality. The assembly line ensures product quality.
Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.
Track system
The surface of the control box has undergone anti-corrosion treatment Reasonable layout for easy maintenance Protection level IP55 Environmental temperature:<45 ° C, humidity<90%
