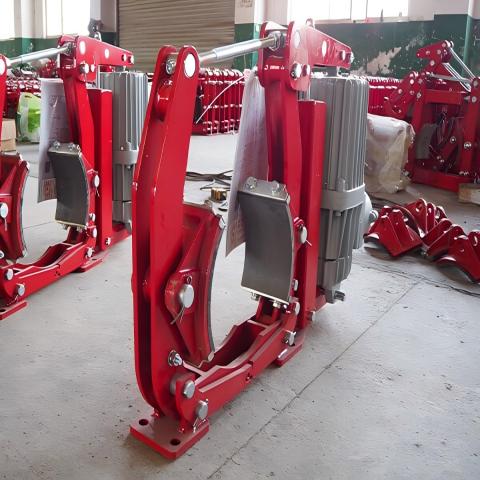

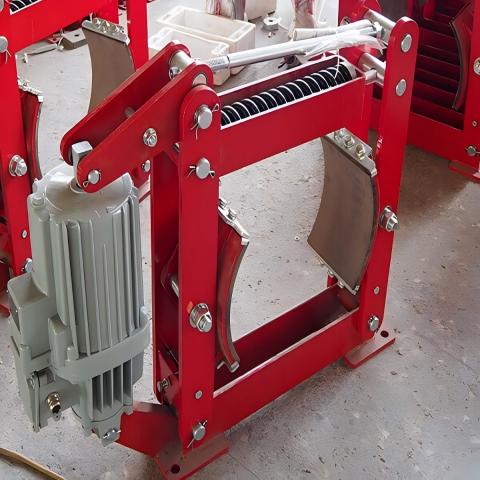

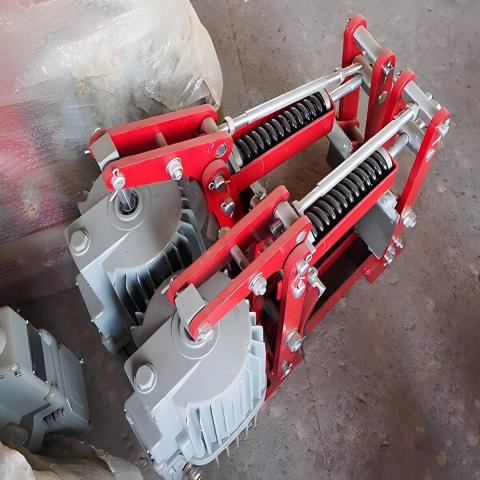

Description
Electromagnetic brake is a connector that transmits the torque of the active side to the passive side. It can be freely connected, disconnected or braked as needed. It has the advantages of compact structure, simple operation, sensitive response, long life, reliable use, and easy remote control. Electromagnetic brake: Electromagnetic brake uses the electromagnetic principle to increase the brake resistance through the action of electromagnetic force, thereby achieving the braking process.
Working Condition
The ambient air temperature is -5°C-40°C, and the relative humidity is not more than 85%.
There is no explosion hazard in the surrounding medium, and there is no gas or conductive dust that is enough to corrode metal and damage insulation.
The coil supply voltage fluctuation does not exceed +5% and -15% of the rated voltage value.
Features
FEATURE 1
Simple structure, small size, light weight, small working current, safe and reliable.
FEATURE 2
Small maintenance, easy adjustment.
FEATURE 3
Working frequency and service life are significantly improved, and energy consumption is significantly reduced.
Technical Data
| Motor | Brake | Control Box Code No. | ||||||||||||
| Frame No. | 40%ED Output Kw | No. of Pole | Type | MAX Braking Torque kg-m | Coil Standard | Electro- magnet Code No | Lining Code No. | Drum Code No | ||||||
| Input DC 100V | Input DC 200V | |||||||||||||
| Starting Current | Holding Current | Resis- tance | Starting Current | Holding Current | Resis- tance | |||||||||
| 132M | 2.2,3,7 | 6 | TB- AN13 | 5,6.7 | 6.9 | 1 | 14.5 | 3.4 | 0.51 | 58,1 | MC-70N | ML- 132C | D160- 80 | TCB-132 |
| 160M | 5.5,7.5 | 6 | TB- AN160 | 10,14 | 10.7 | 1.6 | 9.3 | 5.4 | 0.81 | 37.1 | MC-90N | ML- 160C | D200- 100 | TCB-160 |
| 160L | 11 | 6 | TR- AN160 | 21.2 | 10.7 | 1.6 | 9.3 | 5.4 | 0.81 | 37.1 | MC-90N | MI- 160C | D200- 100 | TCB-160 |
| 180L | 15 | 6 | TB- AN180 | 30 | 9.4 | 1.4 | 10,E | 4.7 | 0,7 | 42.6 | MC-100N | ML- 180C | D250- 125 | TCB-180 |
| 200L | 22 | 6 | TB- AN200 | 40 | 15.8 | 2.4 | 6.3 | 7.9 | 1.2 | 25.2 | MC-110N | ML- 200C | D250- 125 | TCB-200 |
| 225M | 30 | 6 | TB- AN225 | 53 | 15.8 | 2.4 | 6.3 | 7.9 | 1.2 | 25.2 | MC-120N | ML- 225C | D315- 160 | TCB-225 |
| 250M | 37.45 | 6 | TB- AN250 | 63,80 | 14.7 | 2.2 | 6.8 | 7.4 | 1.1 | 27.1 | MC-130N | ML- 250C | D355- 180 | TCB-250 |
| 280M | 55 | 8 | TB- AN280 | 132 | 23.5 | 3.5 | 4.2 | 11.8 | 1.8 | 17 | MC-140N | ML- 280C | D400- 200 | TCB-280 |
| 315M | 75,90 | 8 | TB- AN315 | 180 | 25.6 | 3.8 | 3.9 | 12.7 | 1.9 | 15.7 | MC-160N | ML- 3150 | D450- 224 | TCB-315 |
| 355L | 110,132 | 10 | TB- AN355 | 335 | 37 | 5.6 | 2.7 | 18.3 | 2.7 | 10.9 | MC-170N | ML- 355C | D500- 250 | TCB-355 |
| 400L | 160,200 | 10 | TB- AN400 | 400,475 | 33.3 | 5 | 3 | 16.7 | 2.5 | 12 | MC-180N | ML- 4000 | D560- 280 | TCB-400 |
| 527L | 250,300 | 12 | TB- AN527 | 900 | 34.7 | 5.2 | 2.9 | 17.4 | 2.6 | 11.5 | MC-190N | ML- 527D | D762- 362 | TCB-527 |
| 527B2 | 600 | 12 | TB-AN 527B2 | 1,500 | 122.2 | 16.7 | 1.8 | MC-200N | ML- 527D | D762- 362 | TCB2- 527B2 | |||
