Description

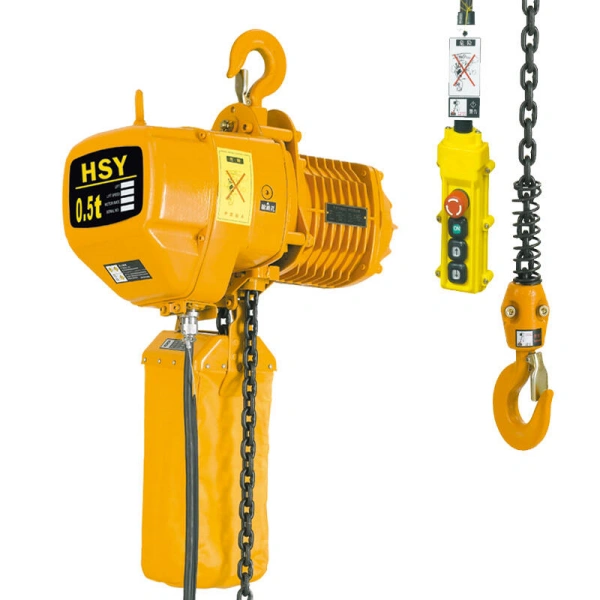

Chain hoist is a kind of light and small lifting equipment. The electric chain hoist consists of an electric motor, a transmission mechanism and a sprocket. The electric chain hoist is all produced in accordance with international standards, the body is beautiful in appearance, strong and durable, and the internal gears are all quenched at high temperature, which increases the wear resistance and toughness of the gears.
Working Condition
- Working temperature: -20~+40 ℃
Features
FEATURE 1
The electric chain hoist is operated by the operator on the ground with a button, and can also be operated in the control room or controlled by wired (wireless) remotely.
FEATURE 2

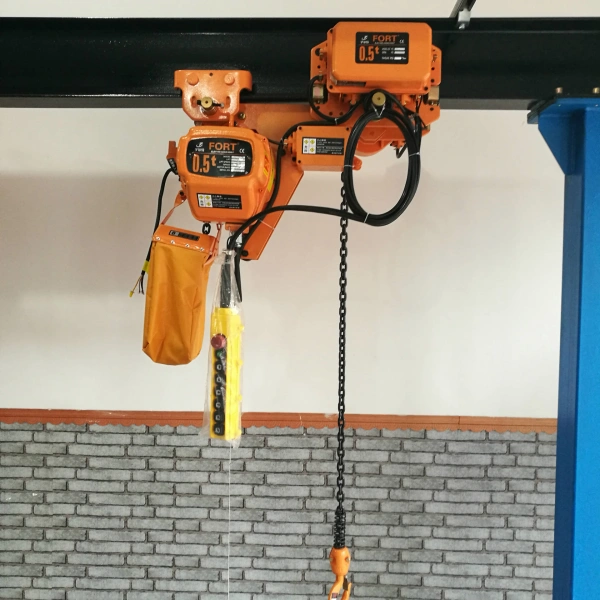

The electric chain hoist can be used for fixed suspension, and can be used with electric monorail trolley and hand-pushed/hand-pulled monorail trolley.
Technical Data
| Type | Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Lifting Motor | Beam(mm) | ||||
| Power(kw) | Rotation Speed(r/min) | Phase | Voltage(v) | Frequency(hz/s) | |||||
| 01 | 1 | 3/9 | 3.9 | 0.75 | 1440 | 3 | 220-440 | 50/60 | 100-160 |
| 02 | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 120-160 |
| 03 | 3 | 3/9 | 3.4 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 120-180 |
| 04 | 5 | 3/9 | 2.8 | 3.0 | 1440 | 3 | 220-440 | 50/60 | 120-180 |
Spare Parts
Hoist reel
The exposed surface and exposed thread surface of the hoist reel should be coated with anti-rust grease. The gearbox part of the electric hoist should be coated with anti-rust grease containing barium petroleum sulfonate, and check whether the rust and protective oil film are complete. In the hook bearing, anti-rust grease should be injected.
Power Supply Bus Bar
Power Supply Bus Bar is a group of power transmission devices that supply power to mobile devices. Due to the movement, the mobile device needs to constantly change its position, and in each different position, the mobile device must be able to obtain power at any time, otherwise it cannot continue to move, and then the trolley line is required
Crane remote control
Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.
