Description
The horizontal deviation value of the wheels of the crane operating mechanism is an important technical parameter of the crane. If the deviation value exceeds the tolerance, it will cause rail gnawing, increase running resistance, produce vibration and noise, intensify rail and wheel wear, and greatly reduce the service life of the crane. Therefore, all types of crane manufacturing technical conditions must specify the allowable value of the horizontal deviation of the wheels.

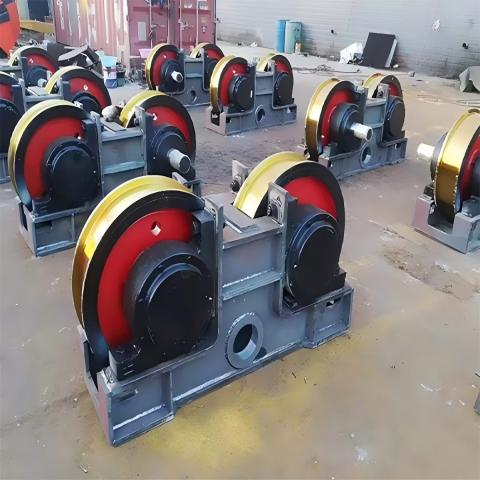

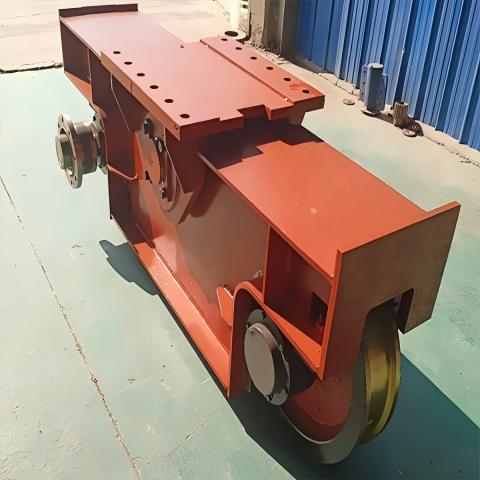

Wheel group structure: In application, controlling the horizontal deviation value of the running mechanism wheels is mainly achieved by taking corresponding technical measures based on different product structures. A commonly used and relatively simple design structure is to assemble the wheels onto a bracket to form a wheel group, such as an angle bearing box wheel group and a trolley type 45 ° split bearing box wheel group. On the main structure of the crane, install and adjust the wheel horizontal deviation appropriately before fixing it.
Working Condition
Working temperature: -20C-40C
Features
FEATURE 1
Wheel surface heat treatment, wear resistance
FEATURE 2

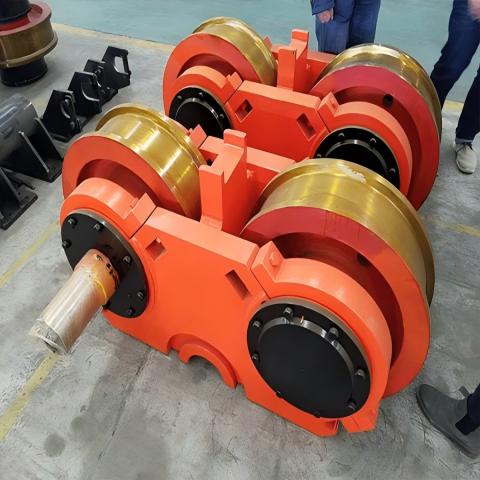

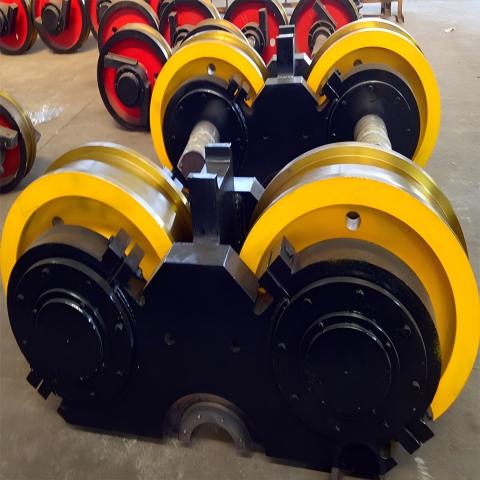

The trolley group is used to increase the number of wheels and reduce the wheel pressure
FEATURE 3
A variety of process options for a long service life
Technical Data
| Weight (t) | Wheel Diameter (mm) | Flange type | Wheel Number (Pc) | Trolley Speed (m/min) | Notes |
| 5 | 125 | Single.Double flange | 4 | 30～45 | |
| 10 | 125 | Single.Double flange | 4 | 30～45 | Lifting height ≤18 m |
| 160 | Single.Double flange | 4 | 30～45 | Lifting height >18 m | |
| 16 | 160 | Single.Double flange | 4 | 30～45 | Lifting height ≤18 m |
| 20 | 200 | Single.Double flange | 4 | 30～45 | |
| 25 | 200 | Single.Double flange | 4 | 30～45 | Lifting height ≤18 m |
| 250 | Single.Double flange | 4 | 30～45 | Lifting height >18 m | |
| 32 | 250 | Single.Double flange | 4 | 30～45 | |
| 40 | 250 | Single.Double flange | 4 | 30～45 | Lifting height >18 m |
| 315 | Double flange | 4 | 30～45 | Lifting height ≤18 m | |
| 50 | 315 | Double flange | 4 | 30～45 | |
| 63 | 315 | Double flange | 4 | 25～40 | Lifting height >18 m |
| 400 | Double flange | 4 | 25～40 | Lifting height ≤18 m | |
| 80 | 400 | Double flange | 4 | 25～40 | |
| 100 | 400 | Double flange | 4 | 25～40 | Lifting height >18 m |
| 500 | Double flange | 4～6 | 25～40 | Lifting height ≤18 m | |
| 125 | 500 | Double flange | 4～6 | 25～40 | |
| 160 | 500 | Double flange | 6～8 | 20～35 | |
| 200 | 500 | Double flange | 6～8 | 20～35 | |
| 250 | 500 | Double flange | 8 | 20～35 | Lifting height >18 m |
| 630 | Double flange | 8～12 | 20～35 | Lifting height >18 m | |
| 320 | 630 | Double flange | 8～12 | 20～35 |
