Description

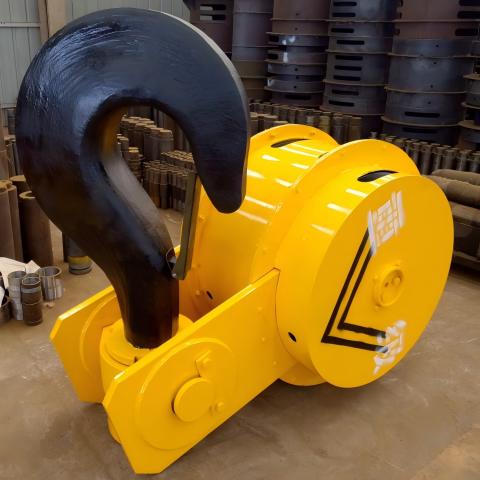

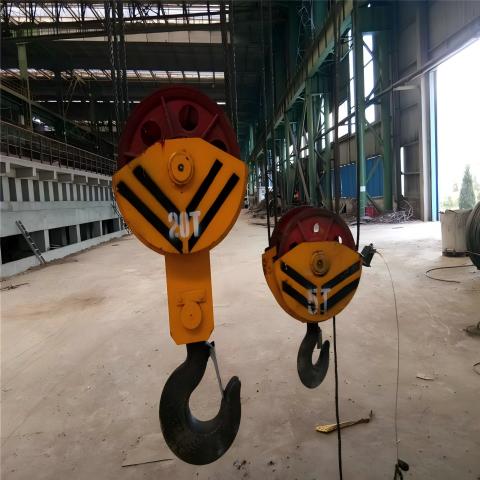

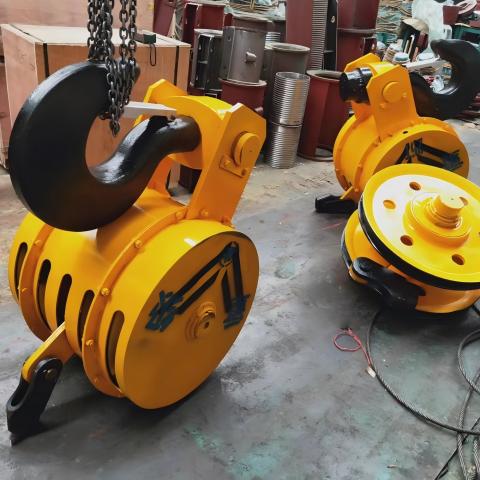

It is the most common hook in crane machinery. The hook is often suspended on the wire rope of the lifting mechanism with the help of components such as pulley blocks.
The crane hooks are divided into single hooks and double hooks according to their shape; According to the manufacturing method, it is divided into forged hook and laminated hook.
The single hook is simple to manufacture and easy to use, but the force is not good, and it is mostly used in working occasions with a lifting capacity of less than 80 tons; Symmetrical double hooks are often used for large lifting weights. The laminated hook is riveted by several pieces of cut and formed steel plates, and the whole hook will not be damaged when individual plates are cracked, and the safety is better, but the self-weight is larger, and it is mostly used in the crane with large lifting capacity or lifting the barrel of molten steel. The hook is often impacted during the operation and must be made of high-quality carbon steel with good toughness.
Working Condition
1.The hook shall not have defects that affect the performance of safe use.
2.The longitudinal axis of the plate hook must be located in the rolling direction of the steel plate, and the hook is not allowed to be spliced.
Features
FEATURE 1
It is simple to make and practical
FEATURE 2
Unique, high quality and safe
FEATURE 3
Save working time and increase work efficiency
Technical Data
| Capacity(t) | Rope Dia.(mm) | Self weight(kg) |
| 3 | 10~14 | 80 |
| 5 | 10~14 | 100 |
| 10 | 10~14 | 200 |
| 16 | 14~20 | 330 |
| 20 | 16~20 | 460 |
