Description

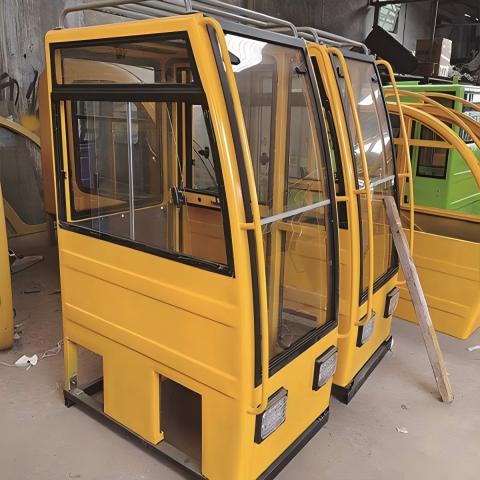

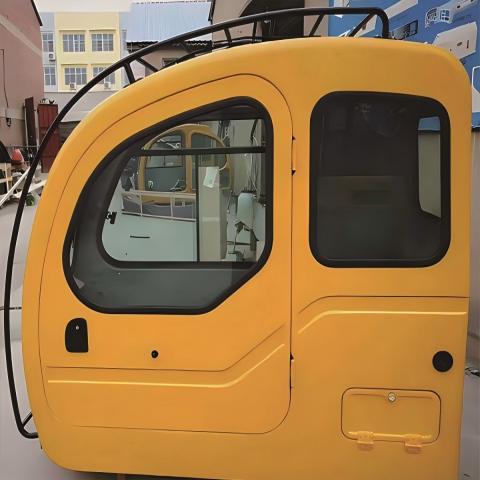

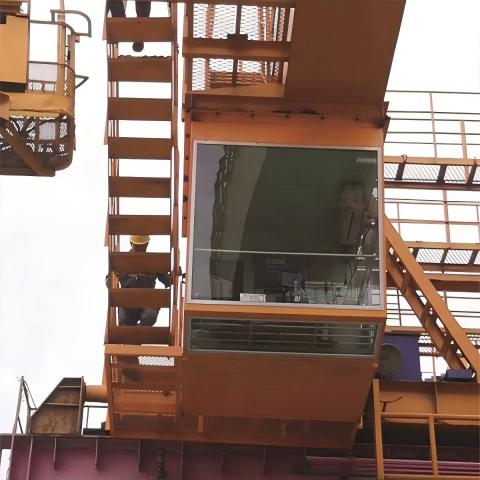

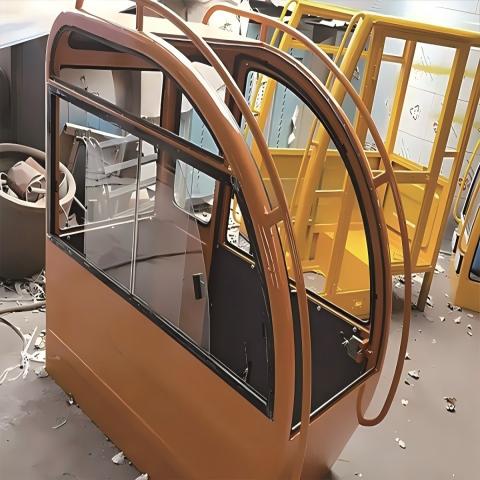

The Crane cab is an important component for the safe operation of drivers in lifting and transportation machinery. Our factory is a factory that produces driver’s cabins, and our products are used for various lifting operations such as port gantry cranes, gantry cranes, floating cranes, quay cranes, yard cranes, ship loading and unloading machines, stacker reclaimers, bucket wheel machines, container tire cranes, bridge cranes, gantry cranes, general bridge cranes, and tower crane cabins Transportation machinery.
Working Condition
1. Wet environment: If the crane often works in a humid environment, the manufacturing material of the cab should be selected to be resistant to moisture and corrosion, and there should be good ventilation facilities.
2. High temperature environment: If in a high temperature environment, the cab should be equipped with air conditioning equipment.
3. Hazardous gas environment: If the crane operates in a hazardous gas environment, corresponding protective devices such as air purifiers should be equipped.
Features
FEATURE 1
Flexible movement: The crane cab can travel along the track and freely move in narrow spaces such as factories and docks, using the crane to complete lifting tasks.
FEATURE 2
Large load-bearing capacity: The design of the crane cab has a high load-bearing capacity, suitable for lifting heavy equipment, large components and other heavy items.
FEATURE 3
Safe and reliable: The hanging cab provides a safe driving environment for the driver, which can effectively avoid the occurrence of safety accidents.
FEATURE 4
Easy to operate: The operation of the hanging cab is simple and easy to learn, and the driver only needs to receive simple training to operate on duty
Technical Data
| Item | Model | D mm | H mm | h mm | B mm | b mm | mm | Buffer capacity kn.m | cushion stroke mn | Cushioning force kn |
| 1 | JHQ-C-1 | 65 | 80 | 8 | 100 | 70 | 12 | 0.265 | 60 | 28 |
| 2 | JHO-C-2 | 80 | 80 | 8 | 115 | 85 | 12 | 0.400 | 60 | 42 |
| 3 | JHO-C-3 | 80 | 100 | 8 | 115 | 85 | 12 | 0.502 | 75 | 42 |
| 4 | JHO-C-4 | 100 | 80 | 8 | 130 | 100 | 14 | 0.628 | 60 | 66 |
| 5 | JHO-C-5 | 100 | 100 | 8 | 130 | 100 | 14 | 0.785 | 75 | 66 |
| 6 | JHO-C-6 | 100 | 125 | 8 | 130 | 100 | 14 | 0.980 | 94 | 66 |
| 7 | JHO-C- | 125 | 100 | 10 | 165 | 130 | 14 | 1.227 | 75 | 103 |
| 8 | JHO-C-8 | 125 | 125 | 10 | 165 | 130 | 14 | 1.533 | 94 | 103 |
| 9 | JHO-C-9 | 125 | 160 | 10 | 165 | 130 | 14 | 1.960 | 120 | 103 |
| 10 | ,IHO-C-10 | 160 | 125 | 10 | 200 | 160 | 18 | 2.512 | 94 | 169 |
| 11 | JHO-C-11 | 160 | 160 | 10 | 200 | 160 | 18 | 3.125 | 120 | 169 |
| 12 | JHO-C-12 | 160 | 200 | 10 | 200 | 160 | 18 | 4.019 | 150 | 169 |
| 13 | JHO-C-13 | 200 | 160 | 12 | 250 | 200 | 18 | 5.024 | 120 | 265 |
| 14 | JHO-C-14 | 200 | 200 | 12 | 250 | 200 | 18 | 6.280 | 150 | 265 |
| 15 | JHO-C-15 | 200 | 250 | 12 | 250 | 200 | 18 | 7.850 | 188 | 265 |
| 16 | JHO-C-16 | 250 | 200 | 12 | 320 | 250 | 22 | 9.810 | 150 | 414 |
| 17 | JHO-C-17 | 250 | 250 | 12 | 320 | 250 | 22 | 12.266 | 188 | 414 |
| 18 | JHO-C-18 | 250 | 320 | 12 | 320 | 250 | 22 | 15.700 | 240 | 414 |
| 19 | JHO-C-19 | 320 | 250 | 14 | 400 | 315 | 22 | 20.096 | 188 | 675 |
| 20 | JHO-C-20 | 320 | 320 | 14 | 400 | 315 | 22 | 25.732 | 240 | 675 |
| 21 | JHO-C-21 | 320 | 400 | 14 | 400 | 315 | 22 | 32.154 | 300 | 675 |
| 22 | JHO-C-22 | 320 | 450 | 14 | 400 | 315 | 22 | 36.17 | 337 | 675 |
| 23 | JHO-C-23 | 400 | 450 | 14 | 460 | 370 | 22 | 56.5 | 337 | 1054 |
| 24 | JHO-C-24 | 400 | 300 | 14 | 460 | 370 | 22 | 37.7 | 225 | 1054 |
