Description

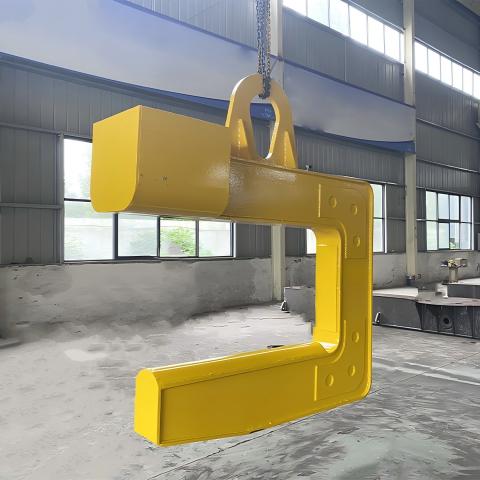

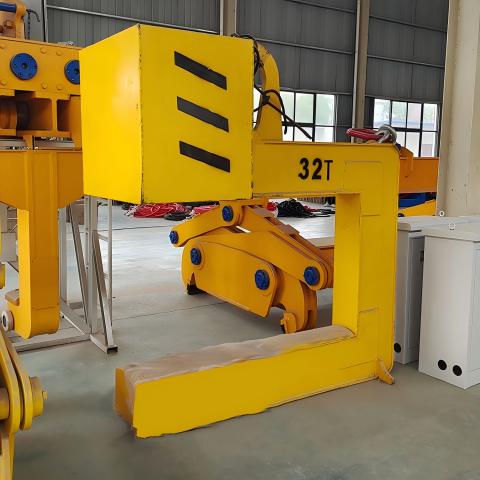

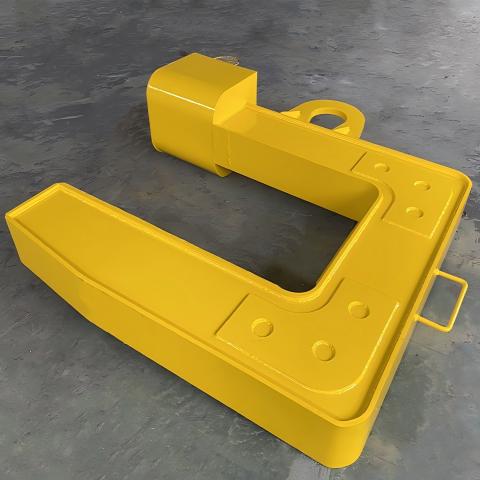

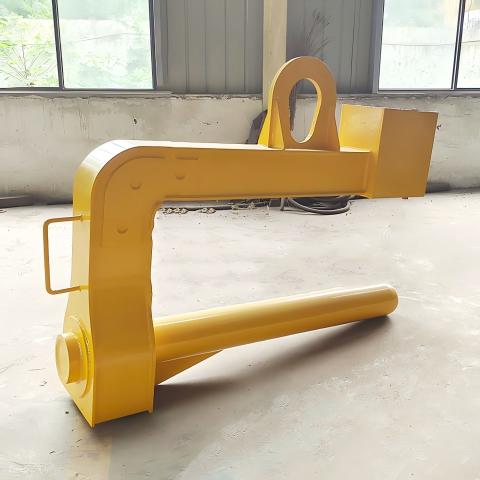

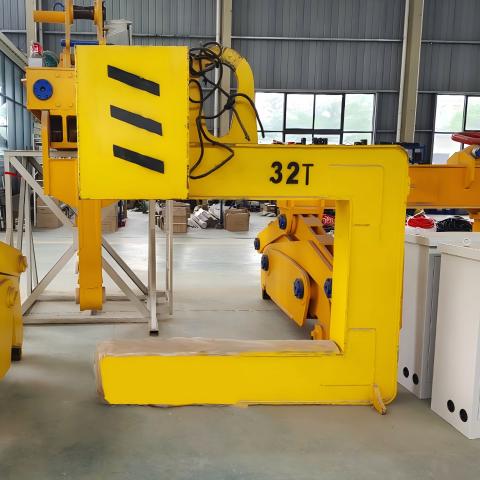

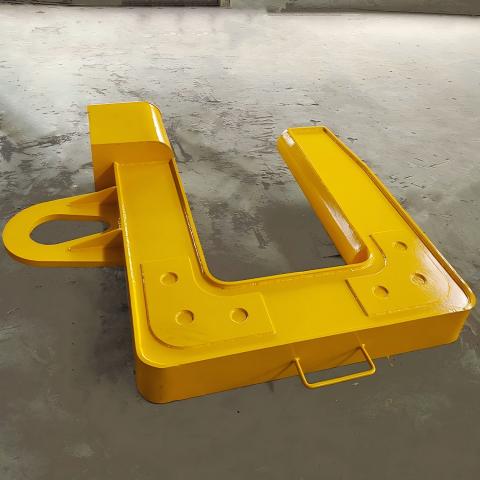

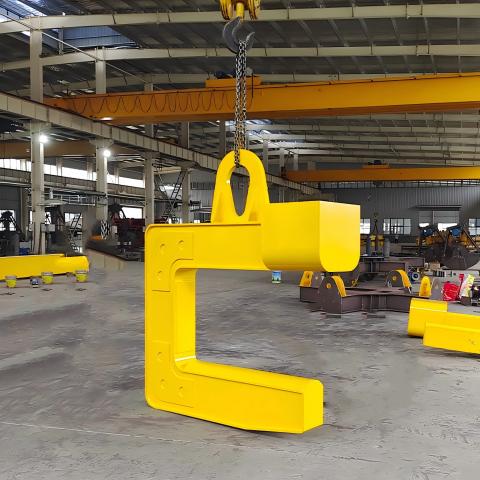

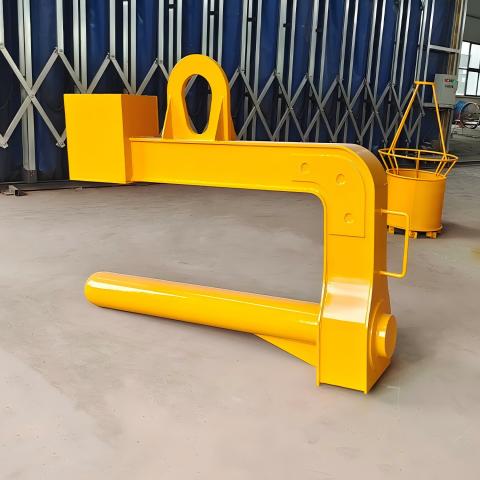

A C-hook is a tool designed to handle cylindrical objects, such as coils or pipes. Its unique shape, which resembles the letter C, holds these objects in place. The arms of the C-hook support the cylindrical load, preventing it from sliding or moving during lifting. C-hooks are commonly used in industries that handle cylindrical materials, including the steel, paper, and textile industries
Working Condition
1. The C-type spreader is suitable for horizontal lifting of steel coils.
2. It is suitable for steel mills, cold-rolled sheet production and processing enterprises, storage and transportation warehouses and other workplaces that use horizontal steel coils.
3. During the operation, when the C-type spreader is lowered to about 0.5m away from the end face of the hoisted coil, stop the hook, the worker supports the hook, directs the machinery to move the hook slowly, inserts the lower end bearing beam of the C-type spreader into the hole in the coil, and makes the inner side of the vertical beam close to the end face of the coil.
Features
FEATURE 1
The structure is simple, easy to use and has strong bearing capacity
FEATURE 2
It is made of low-carbon high-quality alloy steel
FEATURE 3
Special types can be designed upon request
Technical Data
| Work load limit | Coil width(mm) | The diameter of inner coil (mm) | Inner width | Inner height | Itself weight(kg) |
| 3T | 300-500 | ≥400 | 500 | 450 | 350 |
| 5T | 750-900 | ≥400 | 900 | 500 | 450 |
| 900-1100 | ≥400 | 1100 | 600 | 650 | |
| 1100-1300 | ≥560 | 1300 | 600 | 800 | |
| 10T | 700-900 | ≥560 | 900 | 650 | 600 |
| 900-1120 | ≥560 | 1120 | 850 | 900 | |
| 1100-1300 | ≥560 | 1300 | 750 | 1000 | |
| 1300-1500 | ≥560 | 1500 | 850 | 1200 | |
| 15T | 900-1100 | ≥560 | 1100 | 850 | 1200 |
| 1100-1500 | ≥560 | 1500 | 850 | 1600 | |
| 25T | 900-1100 | ≥560 | 1100 | 860 | 1800 |
| 1100-1500 | ≥560 | 1500 | 860 | 2500 | |
| 30T | 1400-1660 | ≥560 | 1160 | 850 | 3400 |
